• Standard LED headlights and fender lights
• Premium Operator Station with deluxe seat suspension and armrests

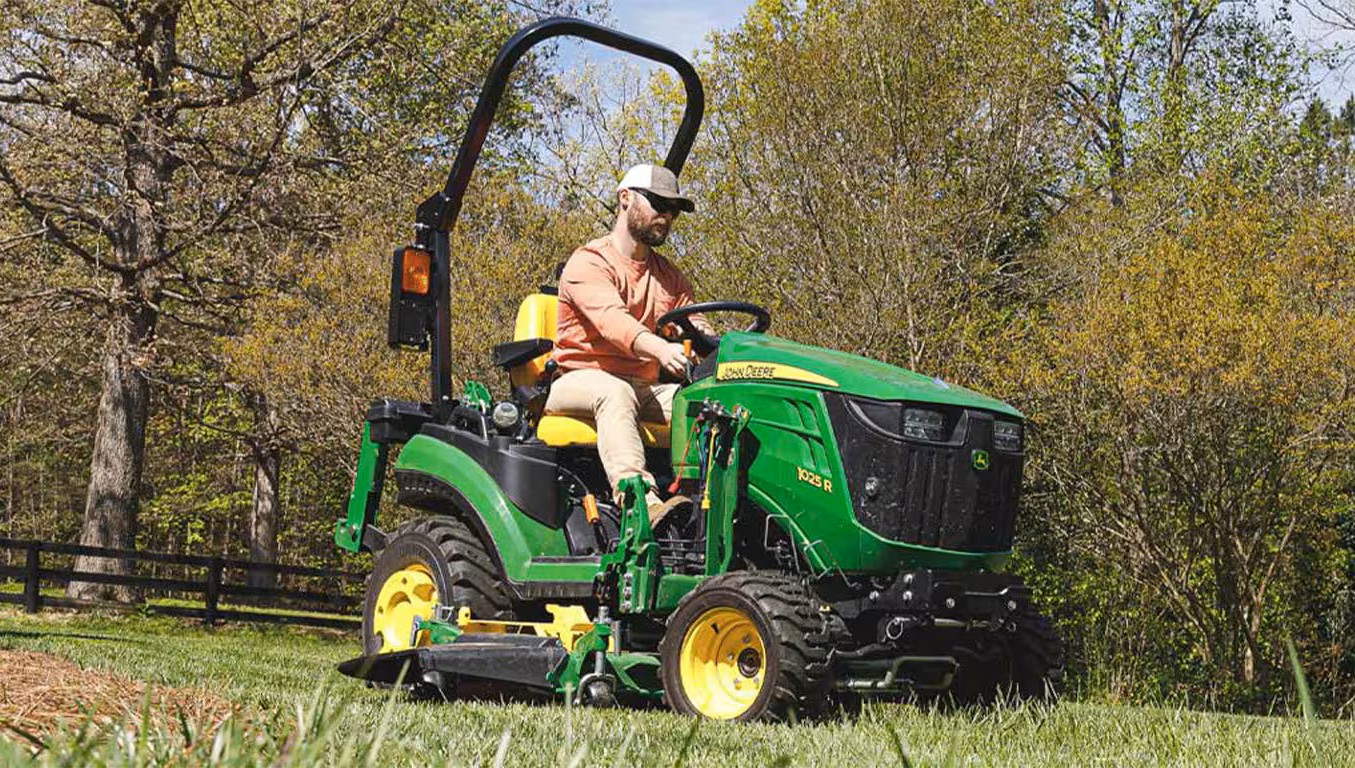

• AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes

Key Specs

1025R
Current Model

• Engine power (gross): SAE J1995 rated power: 17.8 kW / 23.9 hp / 24.2 PS at 3200 rpm

• Power take-off (PTO) power: 12.8 kW / 17.2 hp

• Steering hydraulics: 13.2 L/min (3.5 gpm)

• Implement hydraulics: 13.2 L/min (3.5 gpm)

• Hitch type: Limited Category 1

• Lift capacity, 24-in. behind link arms: 344 kg (758 lb)

• Standard transmission; forward/reverse: Hydrostatic - two range

• Cruise control: Standard

• Approximate shipping weight (open-station; cab): Open station: 706 kg (1556 lb), Cab: 906 kg (1996 lb)

• Wheelbase: 1450 mm (57.1 in)

Engine

• Manufacturer: Yanmar®

• Engine model: 3TNV80F-NCJT

• Engine power (gross): SAE J1995 rated power: 17.8 kW / 23.9 hp / 24.2 PS at 3200 rpm

• Power take-off (PTO) power: 12.8 kW / 17.2 hp

• Rated engine speed: 3200 rpm

• Type: Diesel

• Injection pump type: Indirect injection

• Aspiration: Natural

• Emissions compliance: Final Tier 4

• Cylinders/displacement: Three cylinders: 1.267 L (77.3 cu in)

• Cylinder liners: Cast-in-block

• Bore and stroke: 80 x 84 mm (3.15 x 3.31 in)

• Compression ratio: 23.1:1

• Lubrication: Pressurized

• Cooling system: Water pump

• Air cleaner: Dual element with mechanical restriction indicator

• Engine torque at rated speed: 53.1 Nm (39.2 lb-ft)

• Fuel tank capacity: 24 L (6.3 U.S. gal)

Electrical

• Battery size: 500 CCA

• Alternator (12-V): 40 amp

• Starter size: 1.2 kW (1.6 hp)

Fuel system

• Type: Indirect injection

Transmission

• Standard transmission; forward/reverse: Hydrostatic - two range

• Left-hand reverser: No

• Final drive: Spur gear

• Brakes: Wet disc (left-hand pedal)

• Steering: Power

• Axle capacity: Front 612 kg (1349 lb), Rear 715 kg (1576 lb)

• Cruise control: Standard

• Differential lock: Yes

Hydraulics

• Type: Open center

• Pump rated output: Steering 13.2 L/min (3.5 gpm), Implement 13.2 L/min (3.5 gpm), Total 24 L/min (6.3 gpm)

• Pump type: Single gear

• Maximum operating pressure: 138 bar (2000 psi)

• Draft control sensing: Position control

• Remote control valves available: Three

3-point hitch

• Type: Limited Category 1

• Lift capacity, 24-in. behind link arms: 344 kg (758 lb)

Power take-off (PTO)

• Standard: Rear 540 rpm, Mid 2100 rpm

• Control: Independent

• Clutch: Wet disk

• Brake (for mid and rear PTO): Wet disk

Fluid capacities

• Crankcase with filter: 2.7 L (2.9 qt)

• Transmission and hydraulic system: 12.3 L (3.2 gal)

Final drive

• Type: Spur gear

• Differential lock: Yes

Operator station

• Rollover protective structure: Foldable

• Platform: One-piece semi flat

• Gear shift location: Left-hand side

Cab

• Air conditioning: Heat only

• Doors: Two

• Seat equipment: Premium seat

Dimensions

• Wheelbase: 1450 mm (57.1 in)

• Front axle clearance: 195 mm (7.7 in)

• Turning radius without brakes: Outside front tire 2.51 m (8.2 ft)

• Approximate shipping weight (open-station; cab): Open station 706 kg (1556 lb), Cab 906 kg (1996 lb)

Tires

• Front: R3 Turf 18x8.50-10, R3 Turf Radial 18x8.50-10, R4 18x8.5-10

• Rear: R3 Turf 26x12-12, R4 26x12-12

• Front tread range: 931 mm (36.7 in)

• Rear tread spacing: 895 mm (35.2 in)

Miscellaneous

• Toolbox: Yes

• Tilt steering wheel

• 12-V Outlet

Accessories & Attachments

Chain Box - 028NLV5WS812470Chainsaw Holder - 028NLV5WS812460Clamp Kit - 028NLV5WS812485Handheld Leaf Blower Holder - 028NLV5WS812466Long Tool Holder (2) - 028NLV5WS812450Long Tool Holder (4) - 028NLV5WS812455Mini Clamp Kit - 028NLV5WS812480ROPS Rack - 028NLV5WS812425String Trimmer Holder - 028NLV5WS812475Super Clamp Kit - 028NLV5WS812490Universal Mount Kit - 028NLV5WS812435

Backhoes

16 In. Bucket (0.90 Cu. Ft.) - 028NLVBLV100268 In. Bucket (0.42 Cu. Ft.) - 028NLVBLV10024Grab Handle and Mounting Parts - 028NLVBXX10278Hydraulic Thumb - 028NLVBXX10248Mechanical Thumb - 028NLVBLV10750Ripper - 028NLVBXX10247Rubber Street Pad Kit - 028NLVBLV10986Trenching Bucket - 028NLVBXX10246

Front Hitch

Front Attaching Support Kit (Quick Hitch) - 028NLVBLV10796Hydraulic Angling - 028NLVBLV10880SPHC Front Hitch Compatibility Kit - 028NLVBXX10874

Hydraulics

3rd Function Hydraulic Hose Kit - 028NLVBXX102683rd Function Hydraulic Lines - 028NLVBXX103703rd Function Selective Control Valve - 028NLVBXX10835Power Beyond Kit (OOS only) - 028NLVBXX10837Rear Tubing Kit - 028NLVBLV10948Single-Point Hydraulic Connector - 028NLVBXX10283

Lighting

Dual Light Forward Lighting Kit - 028NLVLVB25546LED Work Light Kit - 028NLVBLV10497Open Station Work Light Brush Guard Kit - 028NLVBLV10399Premium LED Work Light Kit - 028NLVBLV10673ROPS Lights Brush Guard Kit - 028NLVBLV10400Rear Work Light Kit - 028NLVBLV11244Single Rear Auxiliary Rear Work Light Kit - 028NLVLVB25547

Open Operator's Station

Canopy Kit - Rigid Plastic - 028NLVLP64809License Plate Kit - 028NLVBXX10277ShadePro Designed Canopy - 028NLVBXX10589Shadepro Fan Kit - 028NLVBXX10591Tractor Cover - 028NLVLP95637

Operator's Station

133.4-mm (5.2-in.) tie-rod assembly - 028NLVRE56125138-mm (1.5–in.) ball with model year 2010 stud - 028NLVRE57649038.1-mm (1.5–in.) ball mount and socket arm - 028NLVRE57445476.2-mm (3-in.) tie-rod assembly - 028NLVRE558819Apple™ Cable, 6 Ft - 028NLVPM191-050594Bracket, Arm, RAM Double Socket - 028NLVPF80459Cell Phone Suction Cup Kit - 028NLVBXE10606Dual USB Charger - 028NLVPM191-052901Micro USB Cable, 6 Ft - 028NLVPM191-050563Mount - RAM U-Bolt - 028NLVPF80460Mounting Ball Stud - 028NLVRE558821Mounting Parts - Display Mount RAM - 028NLVAL212683RAM Mount Vesa Bracket 1.5 - 028NLVUC17356Type C USB Cable, 6 Ft - 028NLVPM191-050860X-Grip Tablet Dual Suction Cup Kit for Tablets - 028NLVBXE10607

Radio

Heavy-Duty AM/FM, Weatherband, Auxiliary Input, SiriusXM Satellite, Bluetooth Radio - 028NLVSWJHD1635BTRadio - 028NLVSWJHD1130WPSirius/XM Tuner - 028NLVSWSXV200BStereo with AM/FM, Weatherband, SIRIUS Satellite and iPod Ready - 028NLVSWJHD1630

Rear Power Take-Off (PTO)

John Deere Quik Knect™ PTO receiver - 028NLVBLV10953John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11178John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11199John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11177John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11201John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11203John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11202John Deere Quik-Knect Driveline Yoke Bundle - 028NLVBLV11200

Rear Wheel Weights

50-lb (23-kg) Wheel Weight (1), cast iron, 12-in. rear wheel - 028NLVBM1797250-lb (23-kg) Wheel Weight (1), plastic, rear 12-in. wheel, with mounting hardware - 028NLVBM1797670-lb (32-kg) Starter Wheel Weight (1), cast iron, rear 12-in. wheel - 028NLVUC13499Mounting hardware (1) for attaching 70-lb (32-kg) Starter Weight and (2) 50-lb (23-kg) Cast-Iron Weights on 26-in. Tire - 028NLVBM18101Mounting hardware (1) for attaching 70-lb (32-kg) Starter Weight on 26x12-12 Tire - 028NLVBM18089Mounting hardware (1) for attaching two 50-lb (23-kg) Weights on 23-in., 24-in., or 26-in. Tire - 028NLVBM17977

Rear Wheels and Tires

Tire Chains - 028NLVTY15201Tire Chains - 028NLVTY4451Tire chains (pair) for 26x12-12 tires - 028NLVTY15958

Three-Point Hitch

3-Point Hitch Tractor Receiver Hitch - 028NLVLP25001Magnetic hitch pin - 028NLVLP63768iMatch™ Quick Hitch Bushings - 028NLVLVU15507iMatch™ Quick Hitch Bushings - 028NLVLVU12858iMatch™ Bushing Kit - 028NLVLP19969iMatch™ Bushing Kit - 028NLVLP25004iMatch™ Quick-Hitch Category 1 with adjustable top hook - 028NLVLVB25976iMatch™/Quik-Coupler Bushing Kit - 028NLVBW15056
