• Easy drive-over mower deck installation
• Compatible with rear 3-point hitch attachments, backhoes, and loaders so you can keep these implements attached while mowing
• Mid-power take-off (PTO) driven
• Height-of-cut is easily adjusted turning a knob located on the tractor

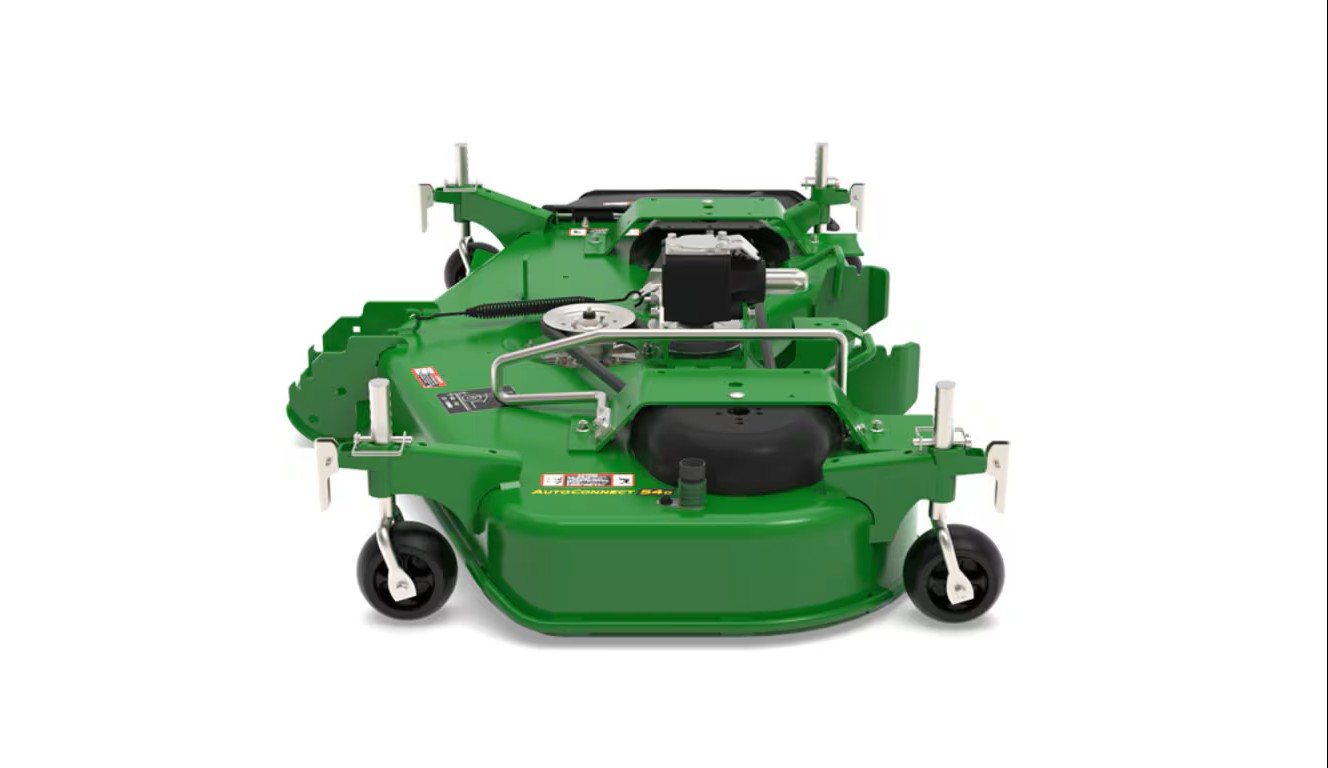

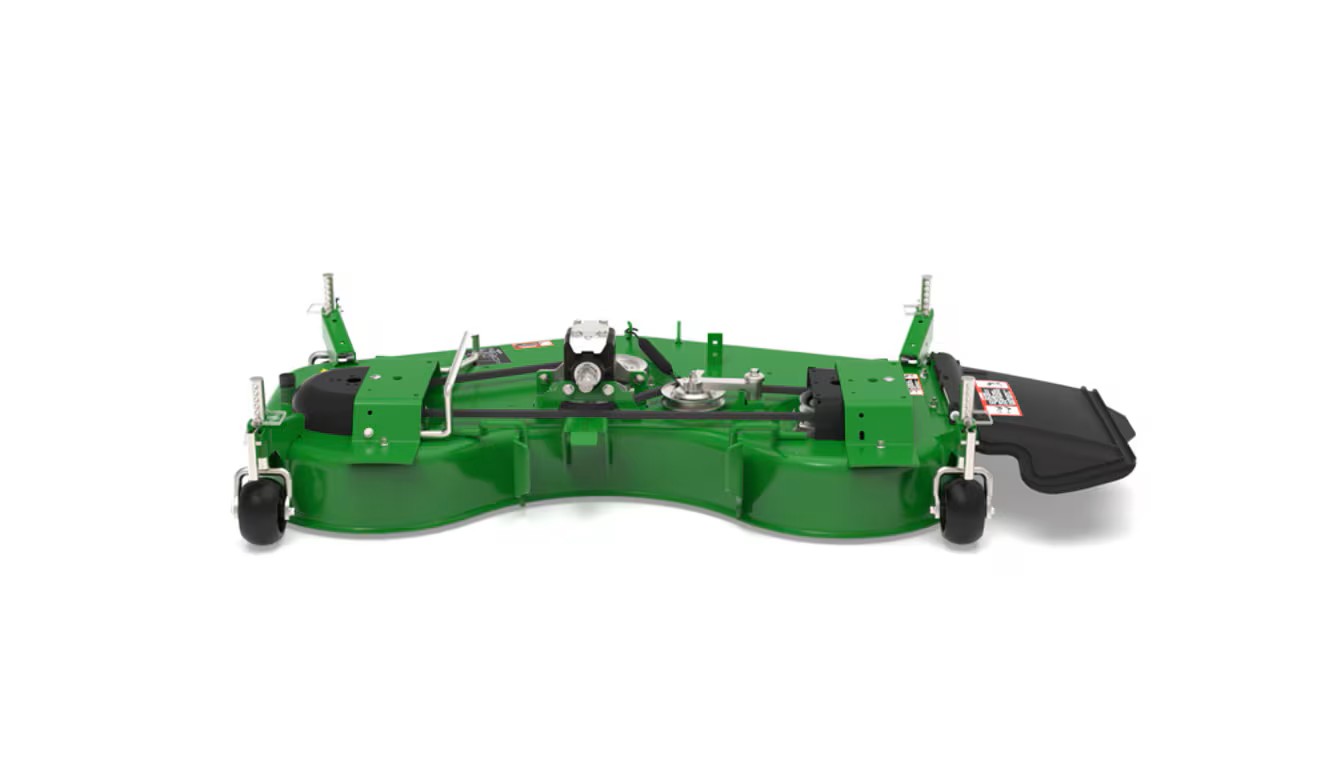

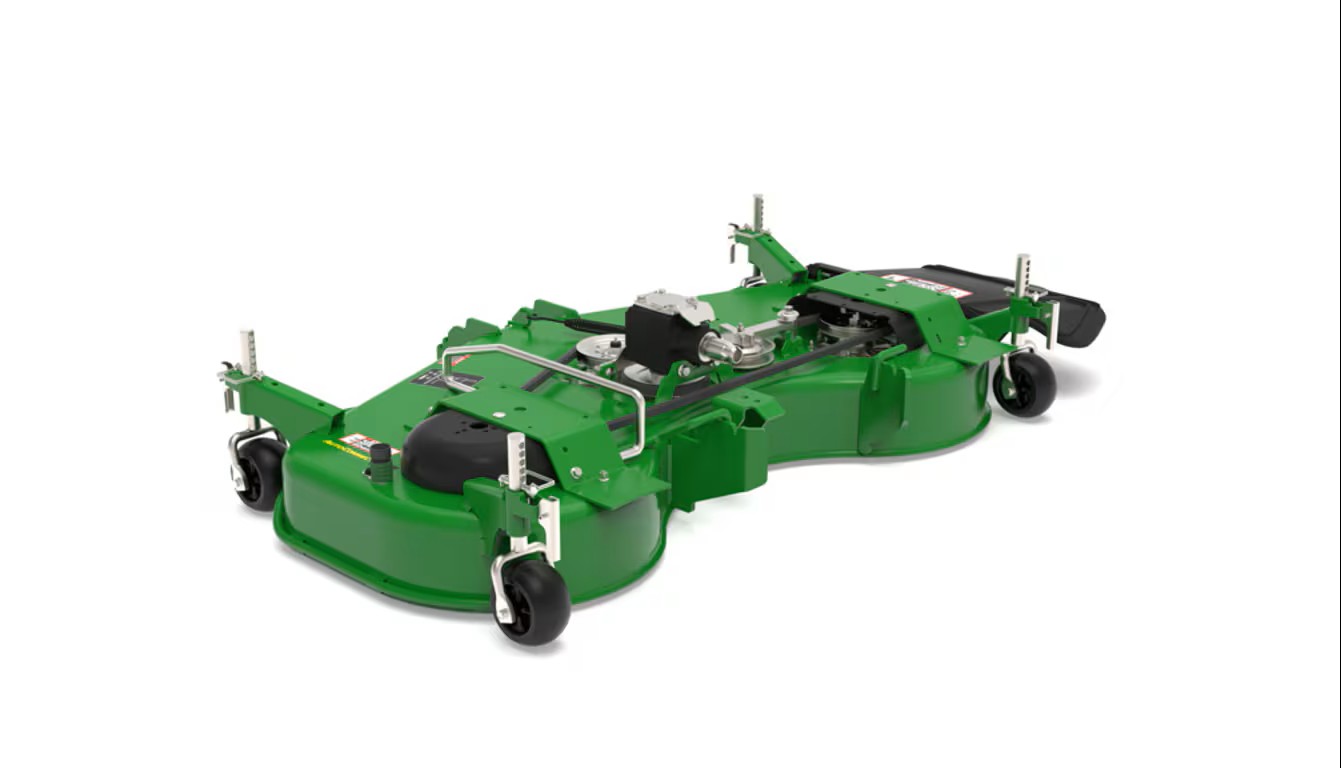

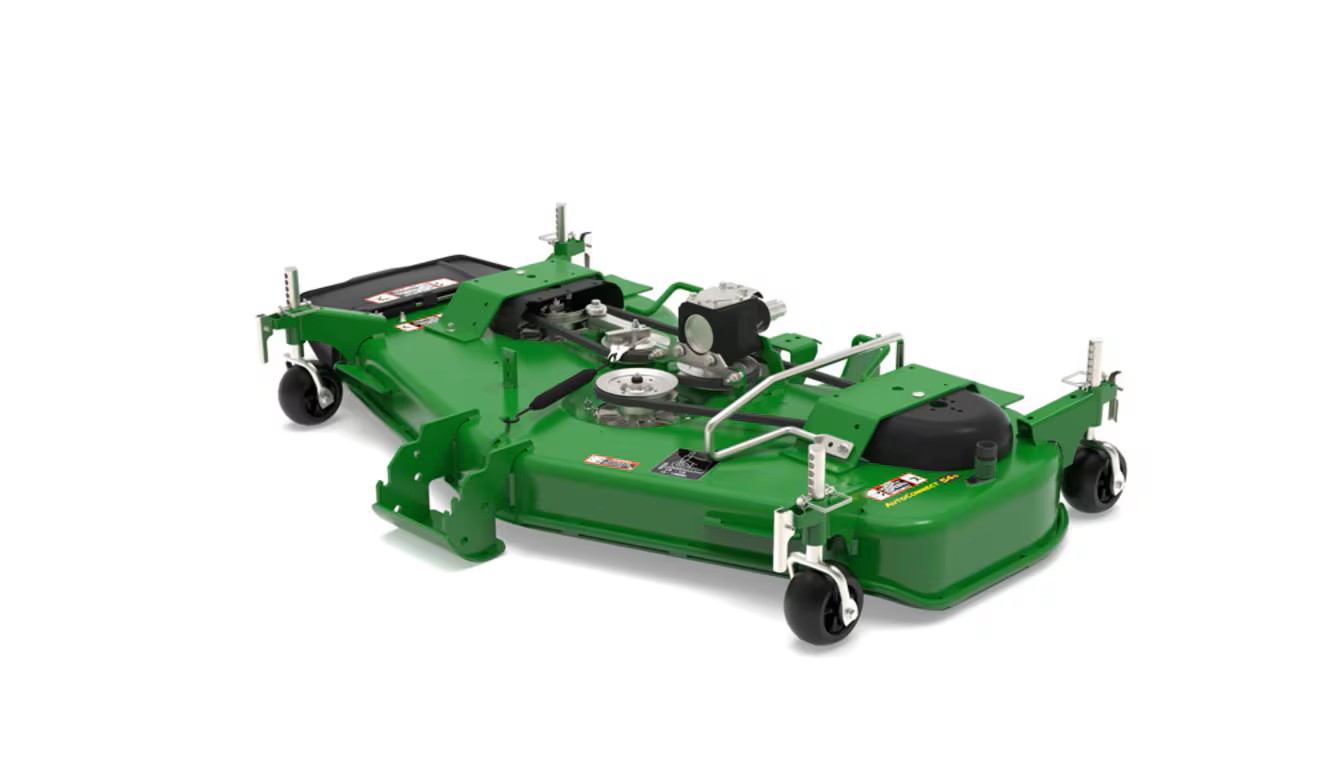

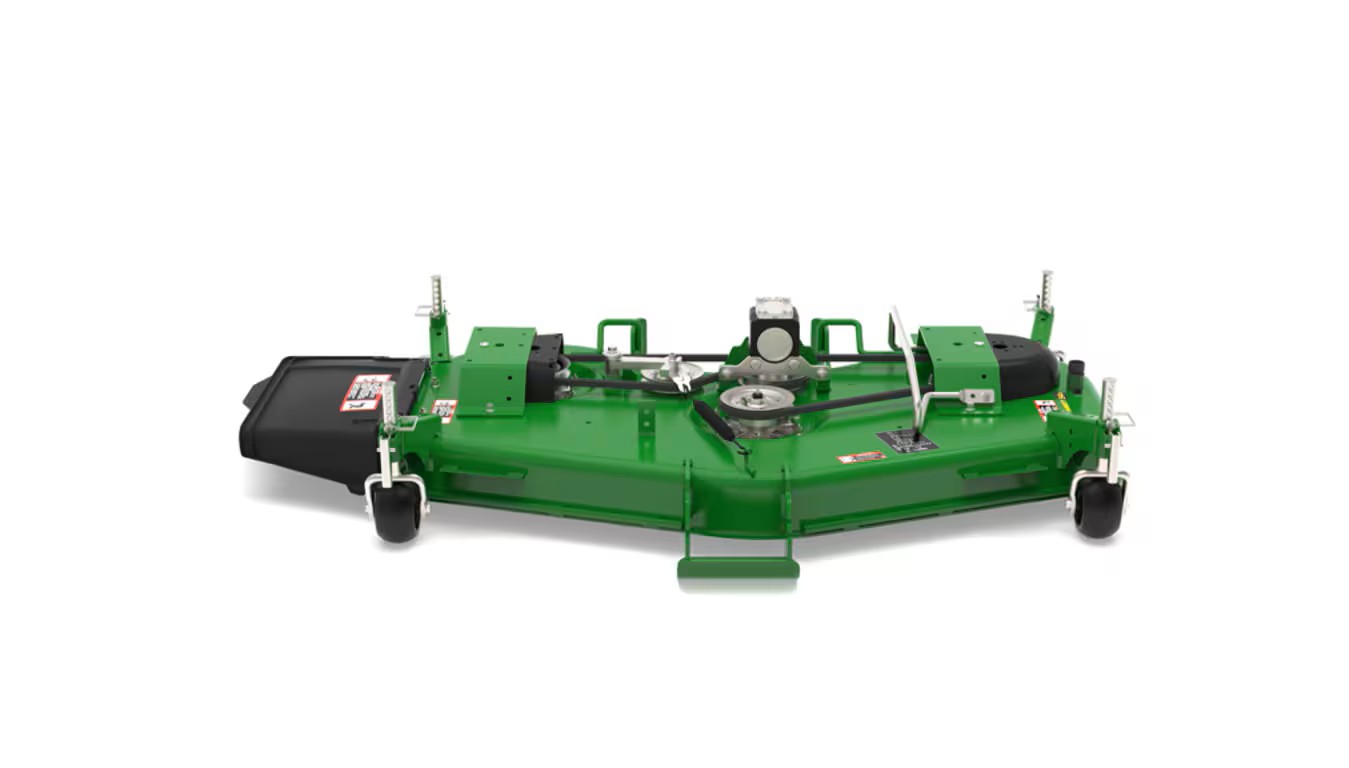

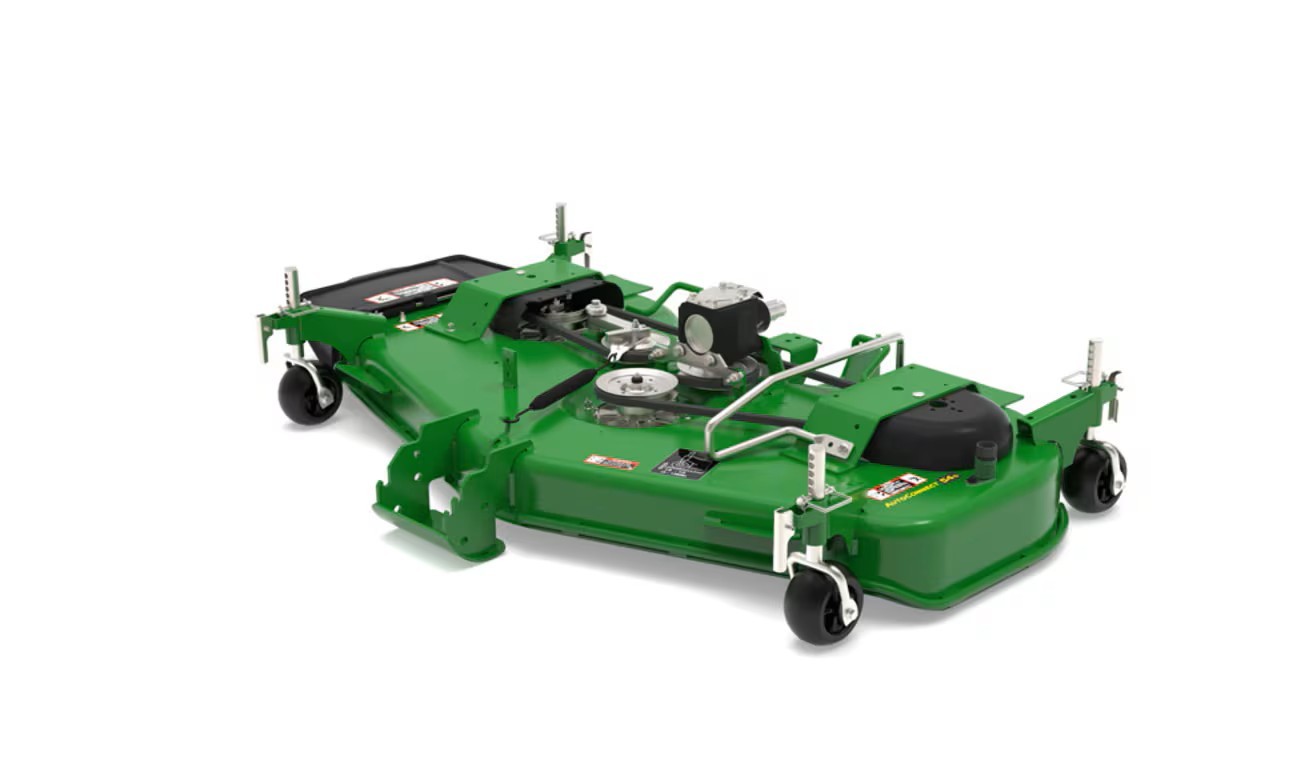

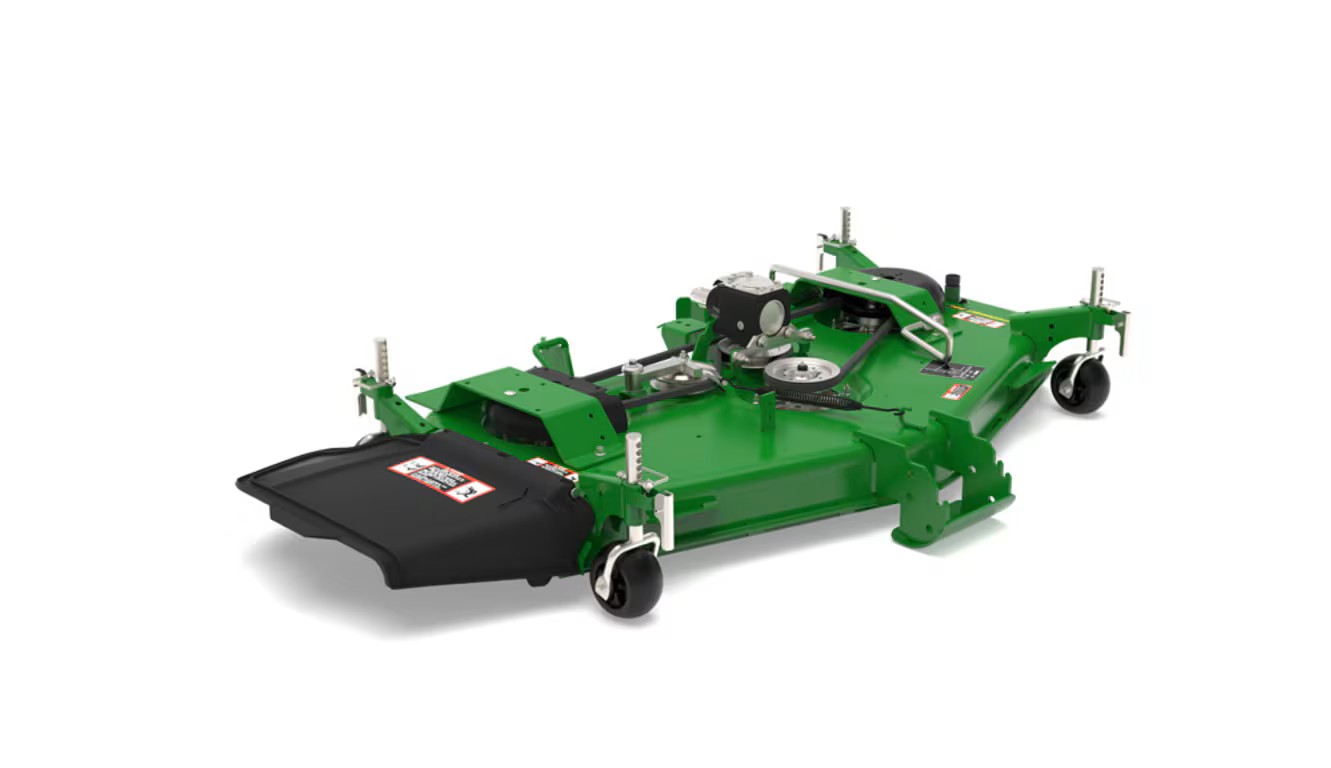

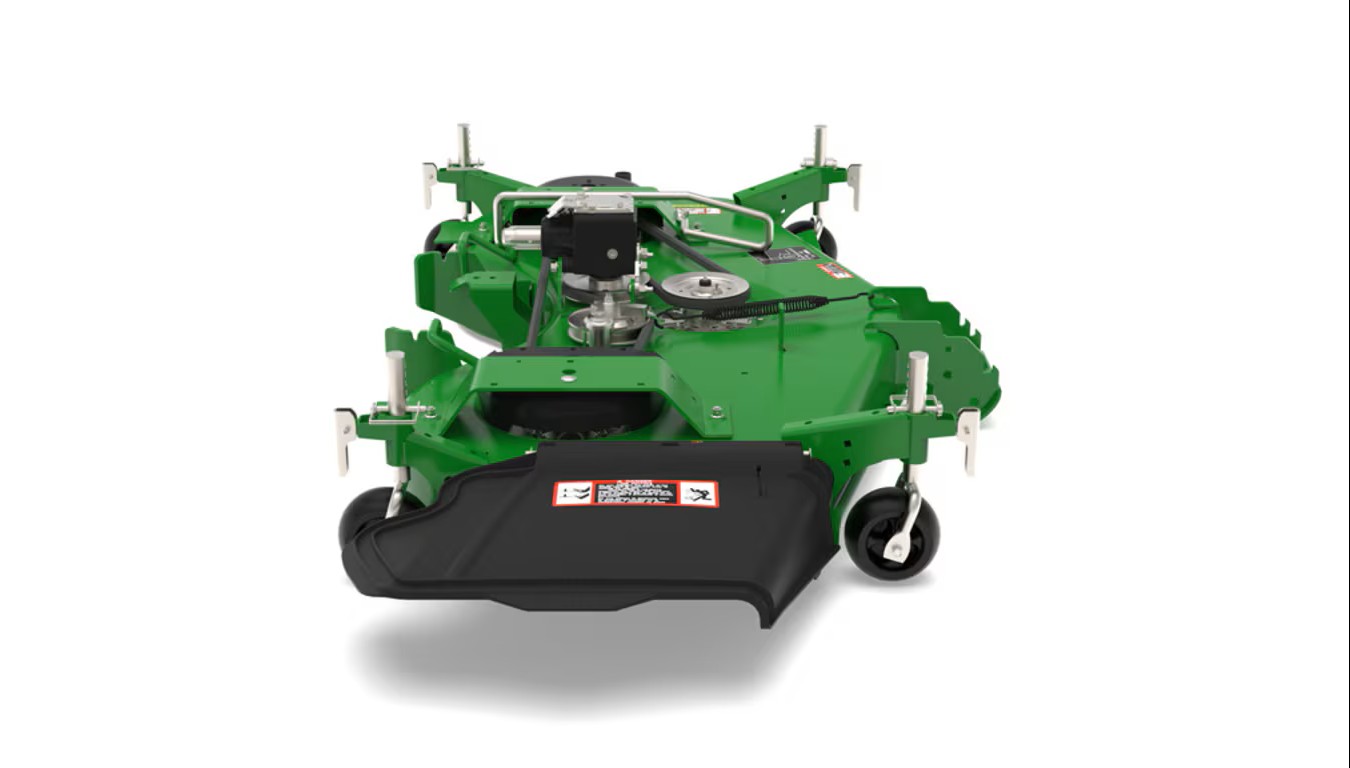

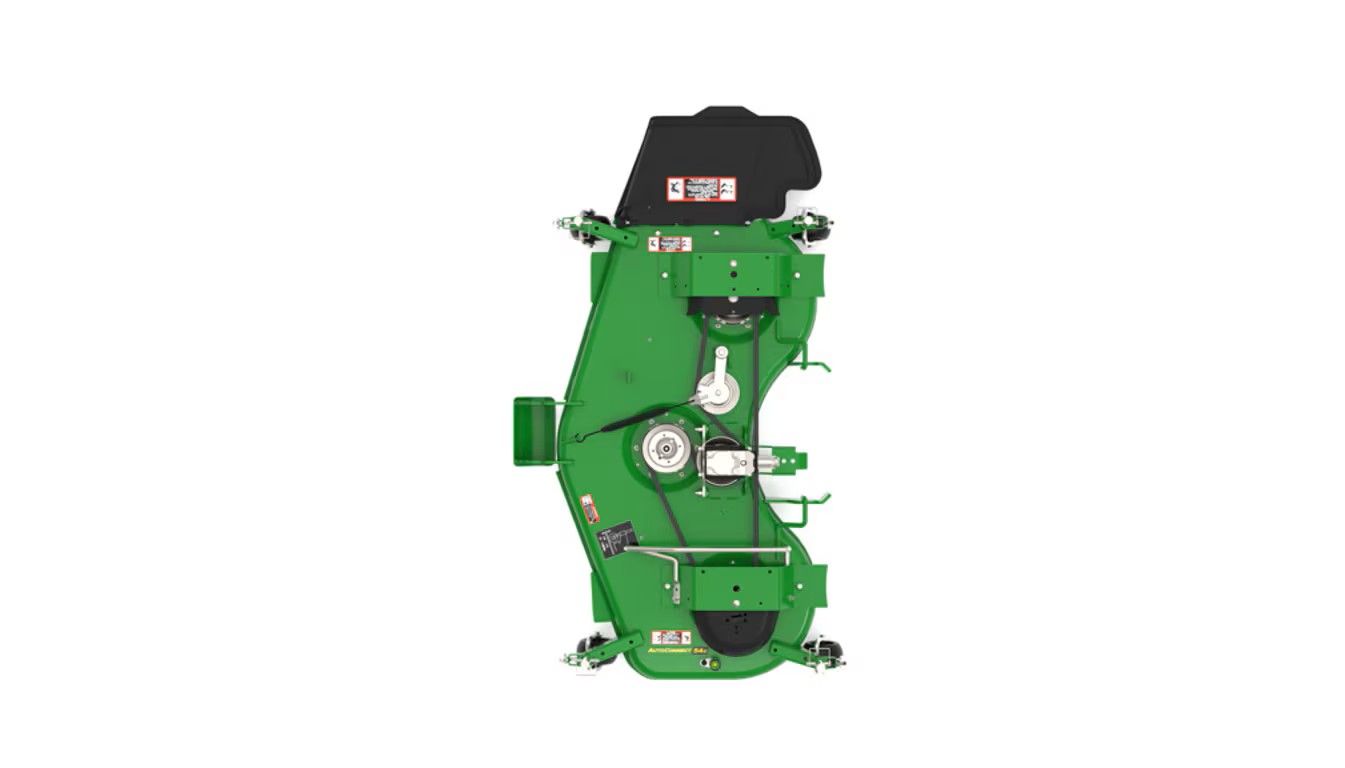

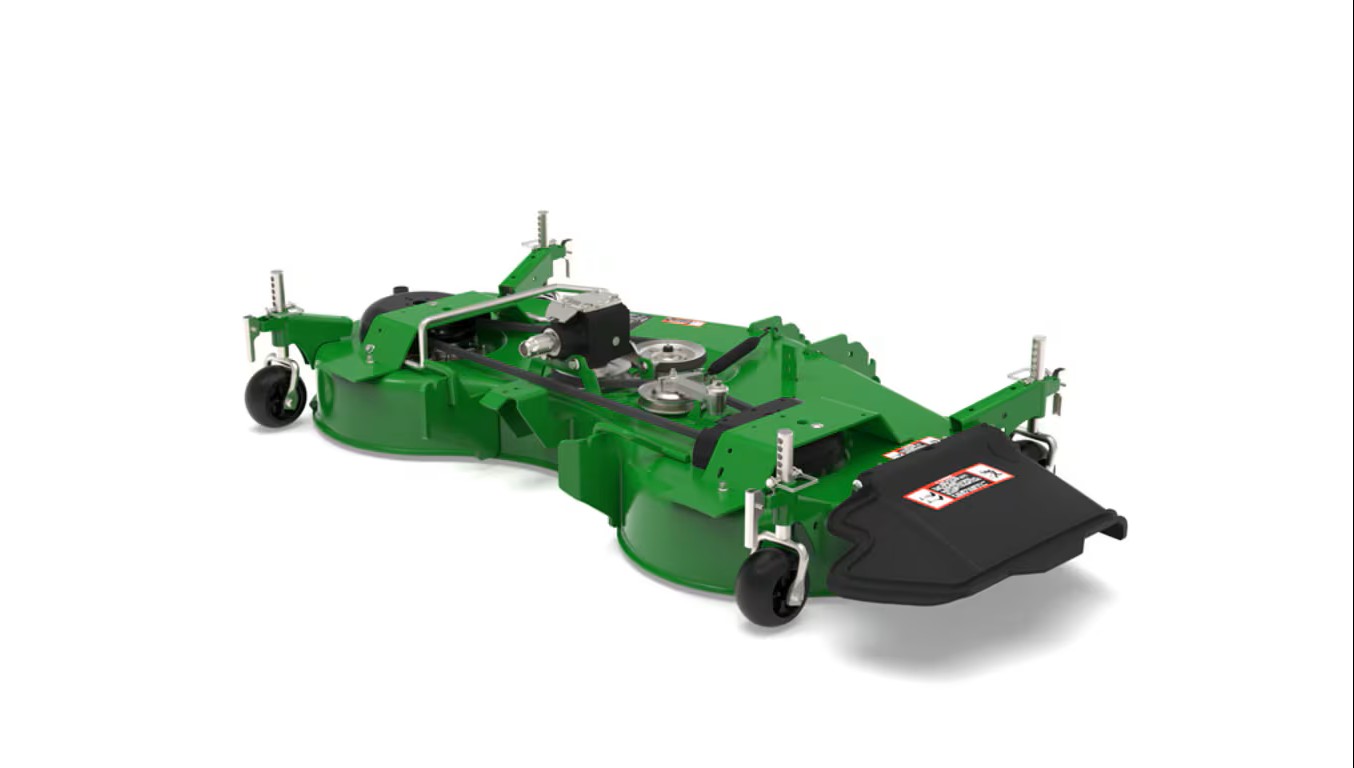

John Deere 54D High Capacity AutoConnect™ Mid-Mount Mower Deck

The John Deere 54D is a high-performance, mid-mount mower deck designed to deliver superior mowing efficiency for sub-compact tractors. Featuring the AutoConnect™ system, this deck allows for quick, tool-free attachment and removal, saving time and effort.

Key Features:

• Cutting Width: 137 cm (54 in.) — ideal for covering medium to large areas with fewer passes.

• Cutting Height: Adjustable from 2.54 cm to 10.16 cm (1 to 4 in.) to suit various grass lengths and terrain.

• Compatible Models: 1023E, 1025R, and 1026R sub-compact tractors.

• Number of Blades: 3 heavy-duty blades for a clean, precise cut.

• Blade Tip Speed: 5,106 m/min (16,751 fpm) at 2600 rpm for powerful cutting action.

• Deck Thickness: 10-gauge steel (3.42 mm / 0.1345 in.) ensures long-term durability and resistance to wear.

• Overall Width:

  • With deflector up: 152 cm (60 in.)

  • With deflector down: 174 cm (68.5 in.)

Gauge Wheels:
Front and rear: 12.7 cm (5 in.) — maintain consistent deck height and ground contact.

Optional Mulching Kit: Available for improved grass recycling and lawn health.

Approximate Weight: 89 kg (197 lb)
