Easy drive-over mower deck installation

• Compatible with rear 3-point hitch attachments, backhoes, and loaders so you can keep these implements attached while mowing
• Simple, one pin, height-of-cut adjustment
• Mid-power take-off (PTO) driven

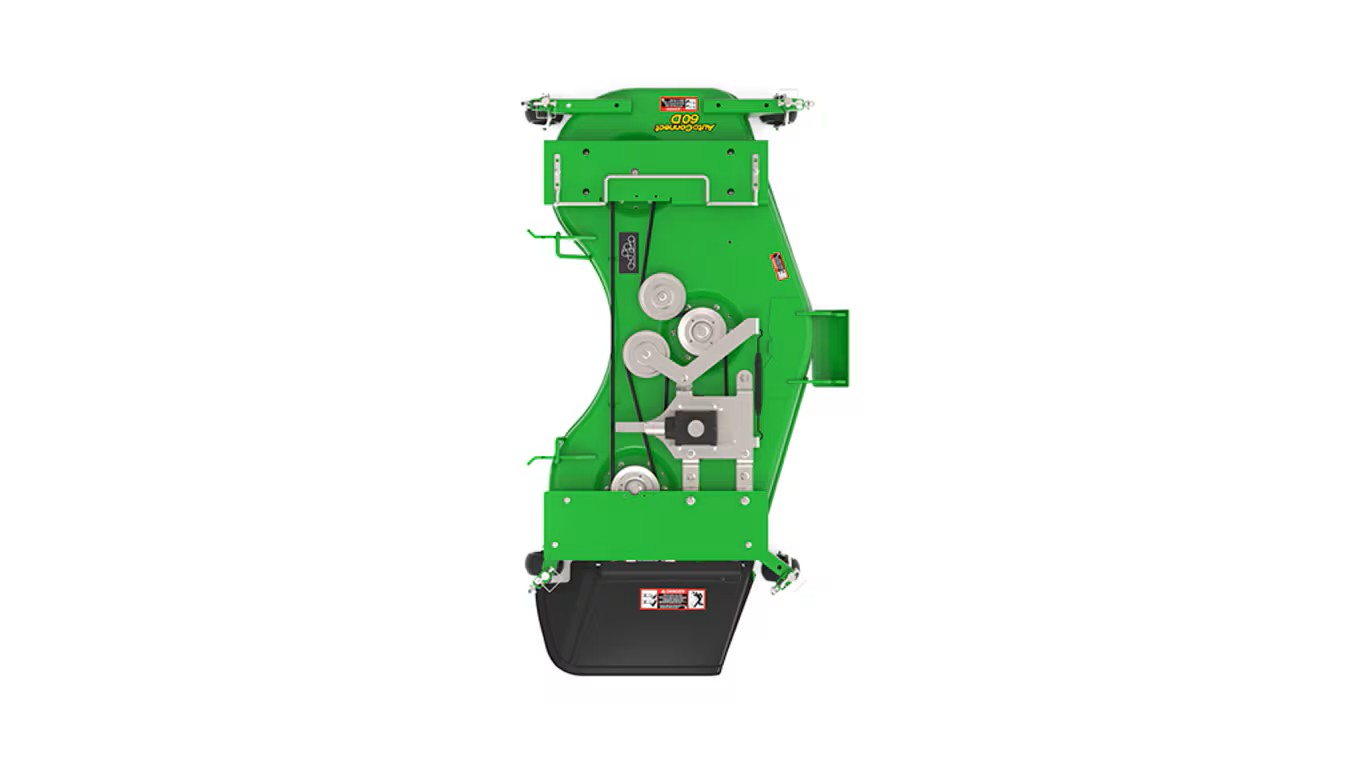

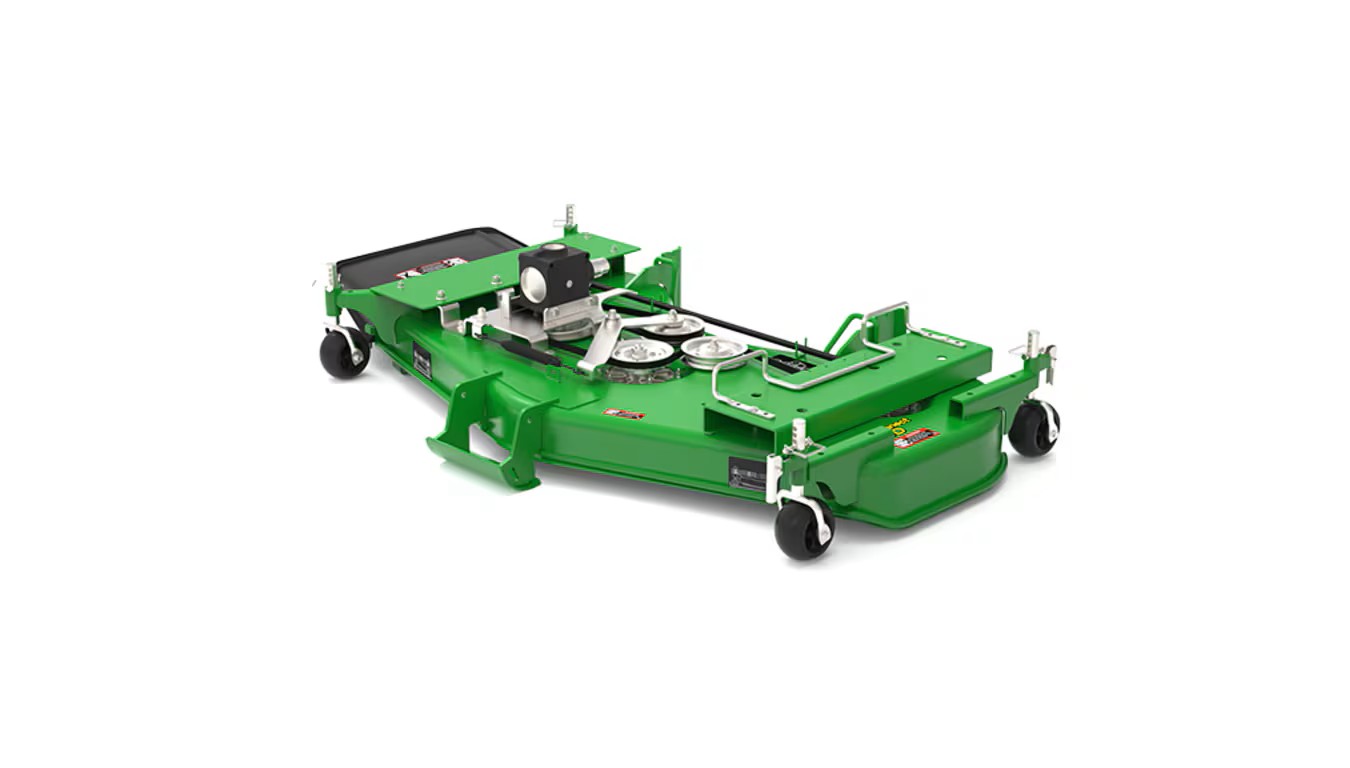

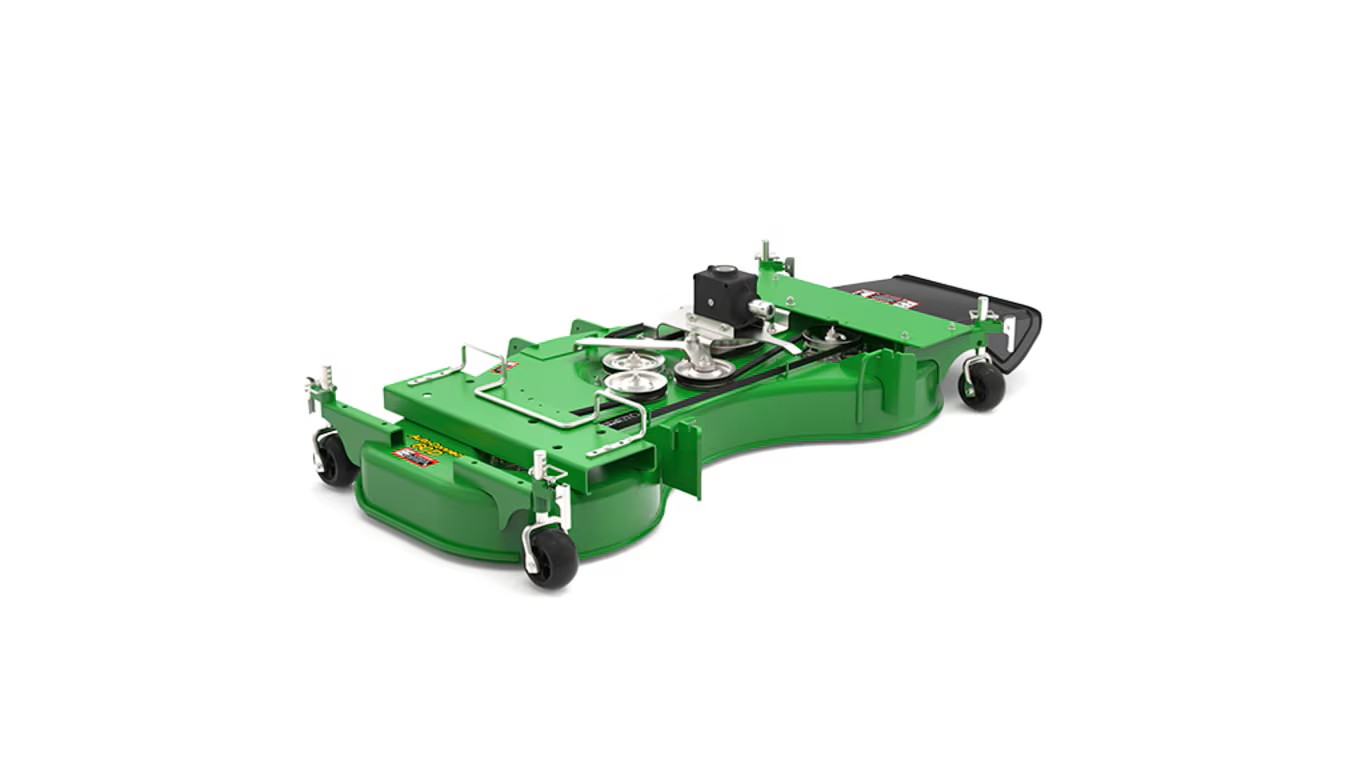

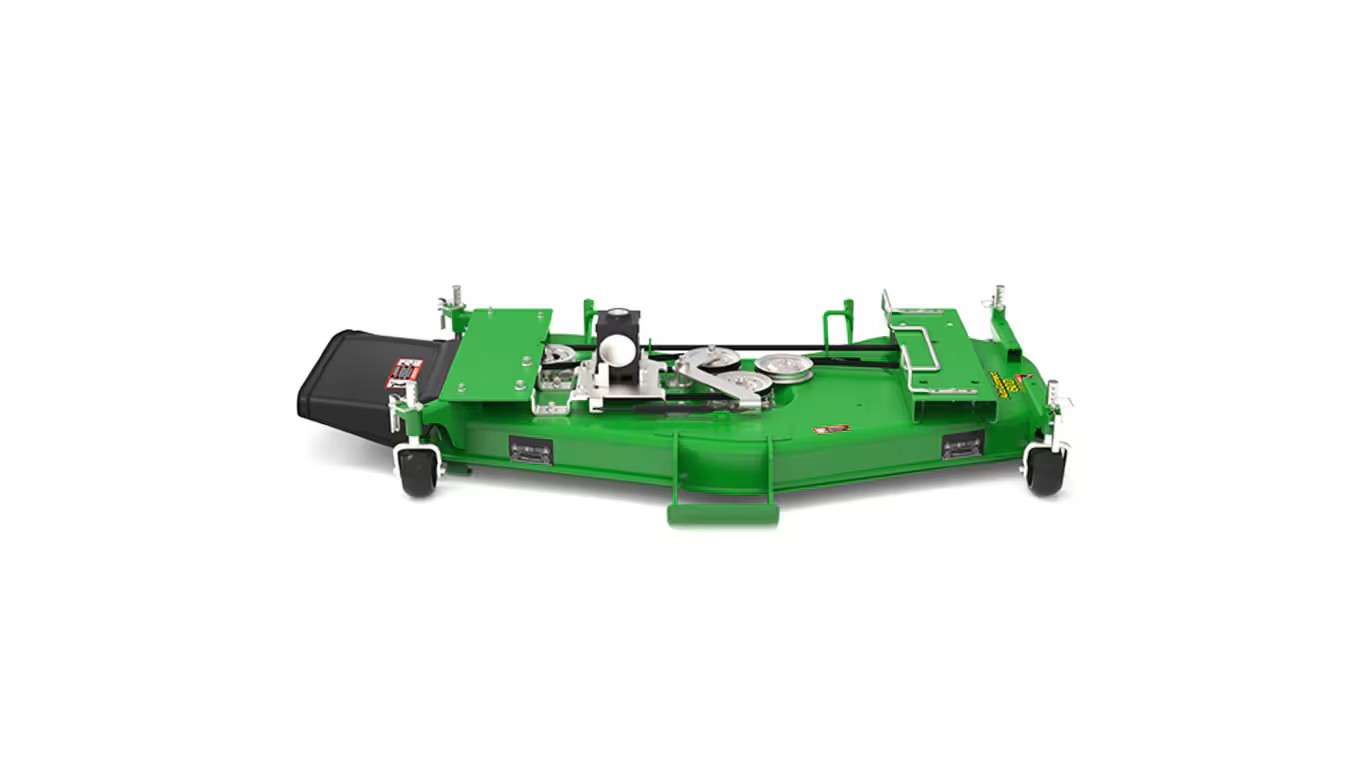

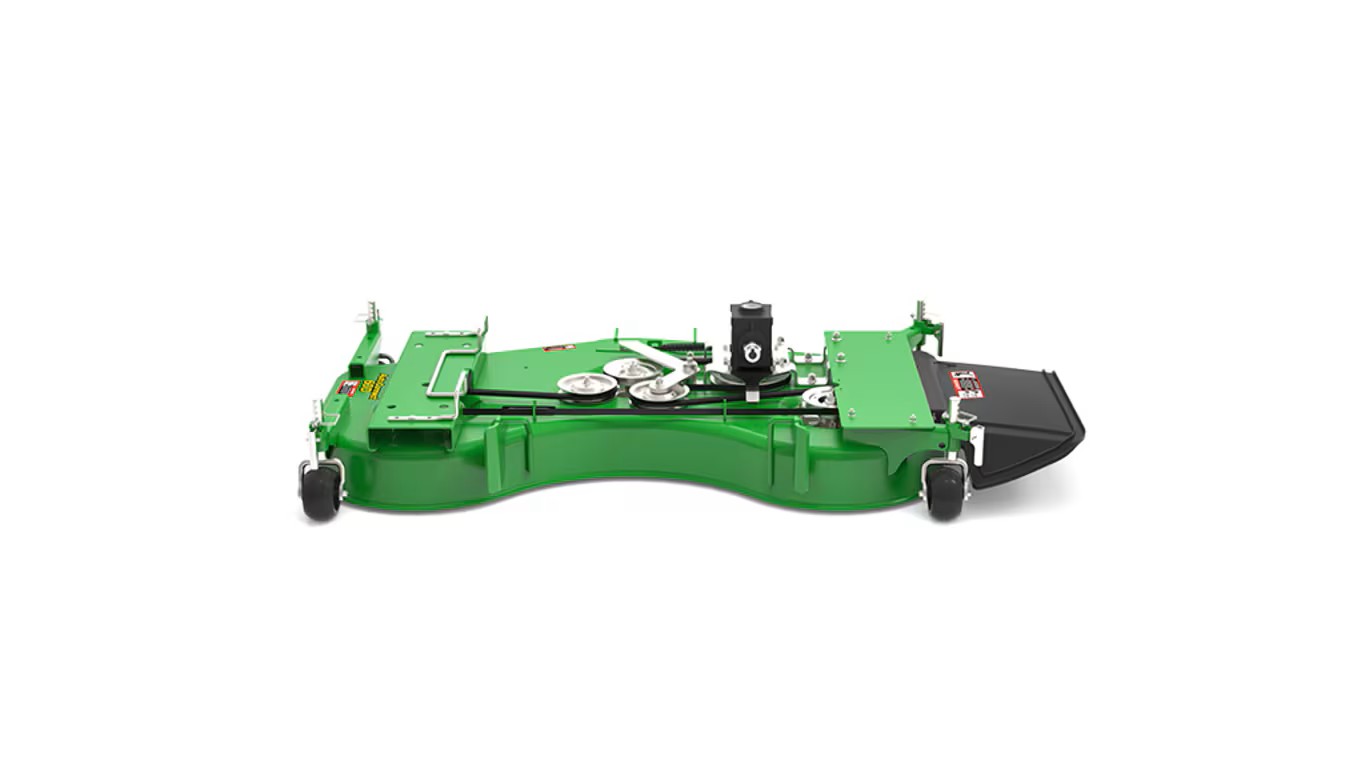

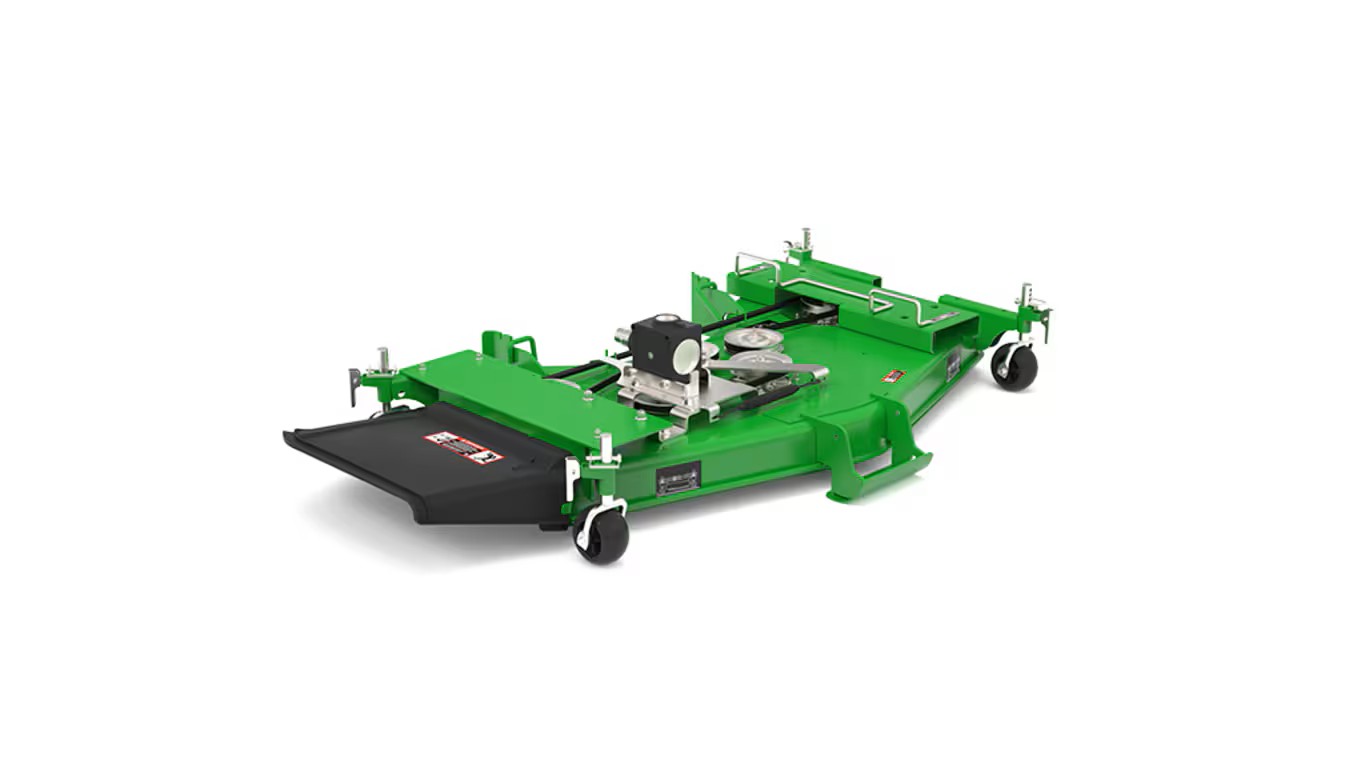

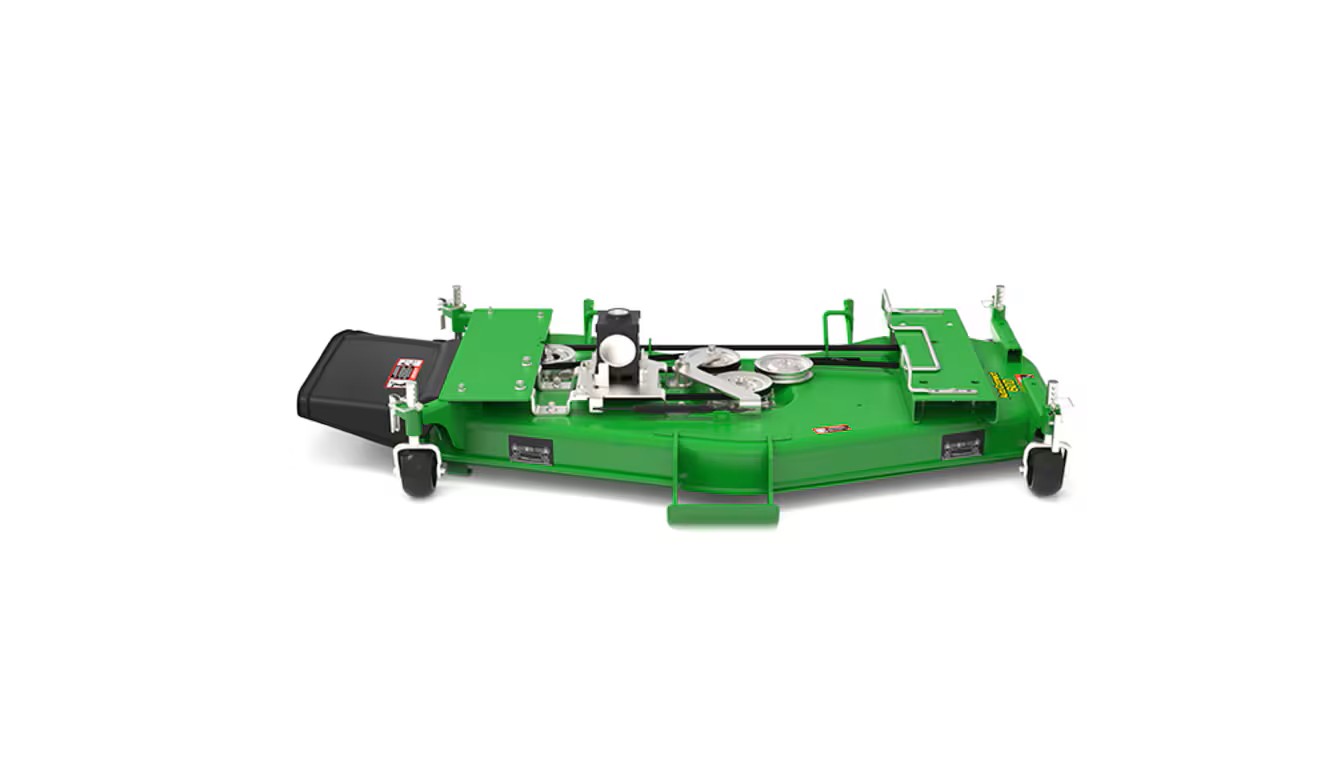

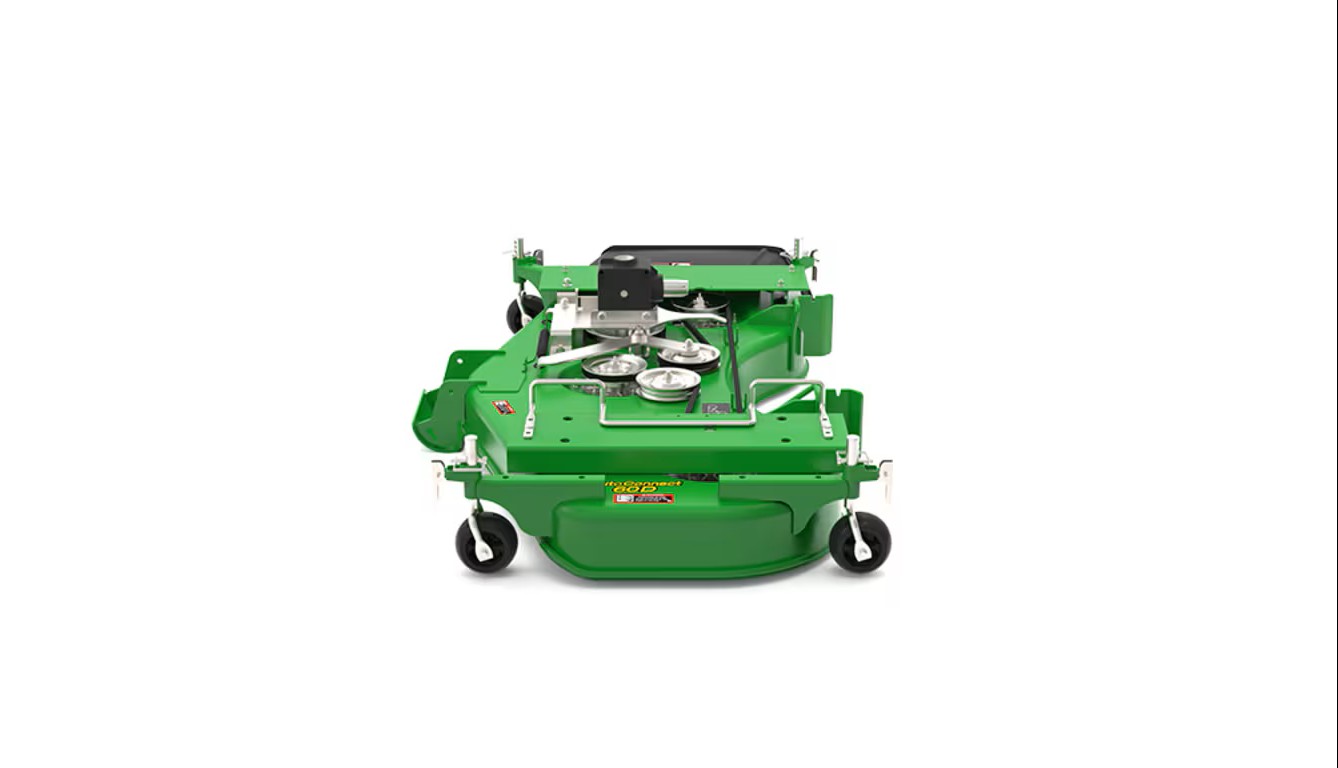

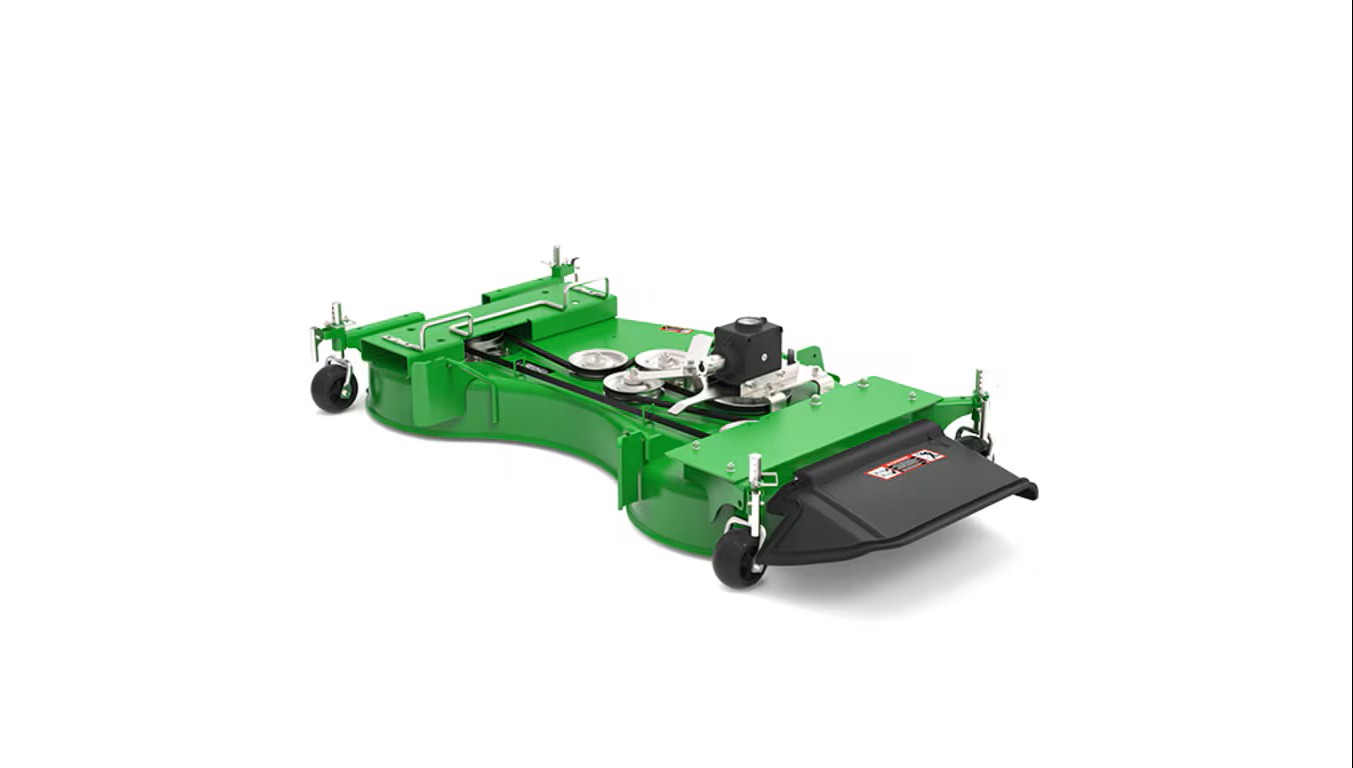

John Deere 60D AutoConnect™ – Mid-Mount Mower Deck

The John Deere 60D is a high-performance mid-mount mower deck designed for sub-compact tractors, particularly those in the 1-Series. Featuring the AutoConnect™ system, it offers quick and effortless attachment or removal — no tools required — saving time and increasing efficiency.

✳️ Key Features:

• Cutting Width: 155 cm (60.9 in.) — covers wide areas efficiently.

• Adjustable Cutting Height: from 2.5 cm to 13.9 cm (1 to 5.5 in.) for precise mowing results.

• Number of Blades: 3 heavy-duty blades for a clean, even cut.

• Blade Tip Speed: Up to 4,858 m/min (15,940 fpm) at 2600 rpm for exceptional cutting performance.

• Deck Thickness: 7-gauge steel (~4.55 mm) for long-lasting durability under heavy use.

• Overall Width:

  • With deflector up: 159 cm (62.5 in.)

  • With deflector down: 185 cm (73 in.)

• Weight: Approx. 147 kg (324 lb)

• Gauge Wheels: 12.7 cm (5 in.) front and rear for consistent ground contact.

• Optional Mulching Kit: Available for effective grass recycling.

✅ Benefits:

• Quick Setup: AutoConnect™ system allows deck connection from the tractor seat — no tools or lifting required.

• Versatile Fit: Compatible with John Deere sub-compact tractors.

• User-Friendly: Easy to operate, low maintenance, and highly efficient.

• Professional Finish: Provides clean, consistent mowing results across varied terrain.
