OVERVIEW

Model #991163

Warranty Guide PDF

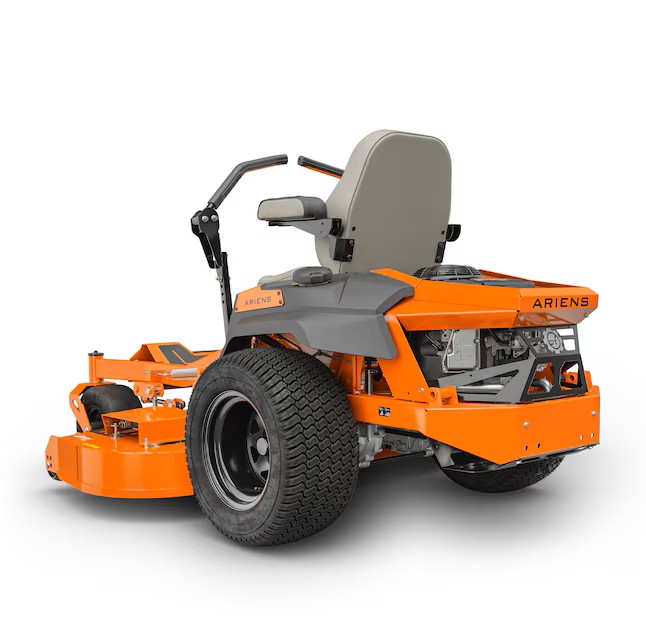

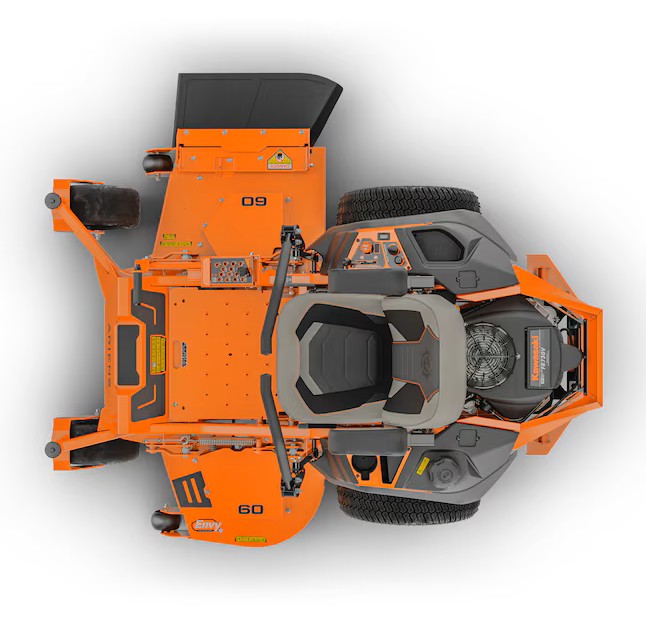

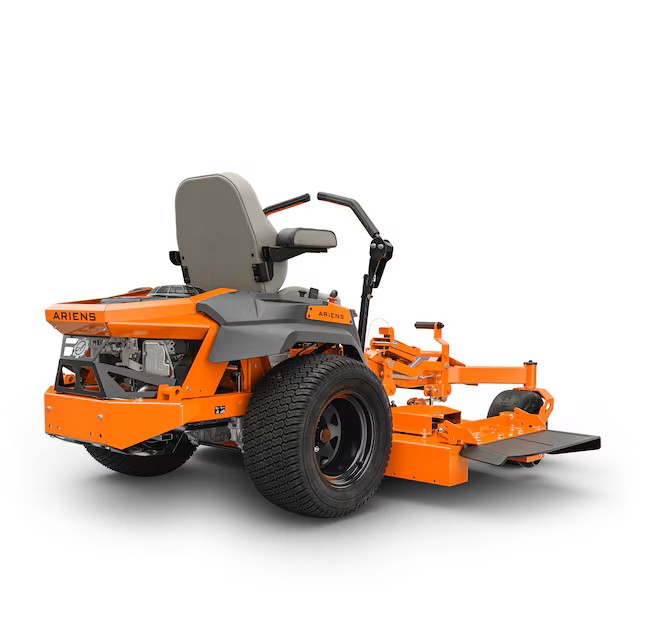

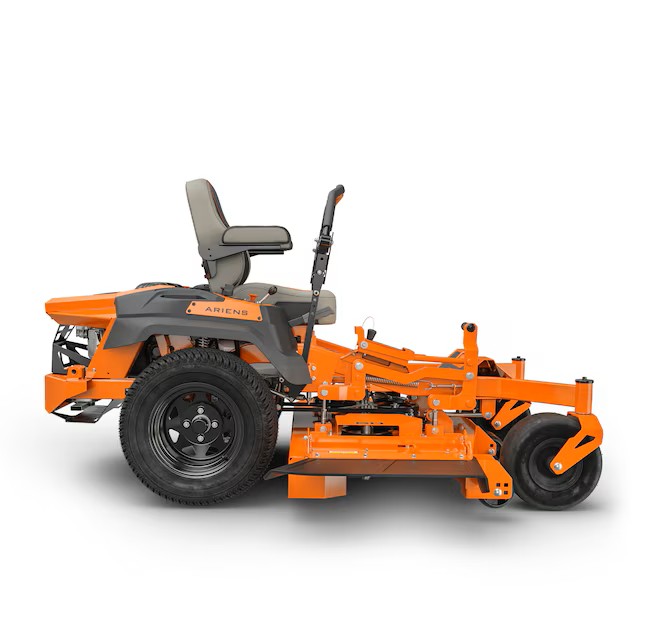

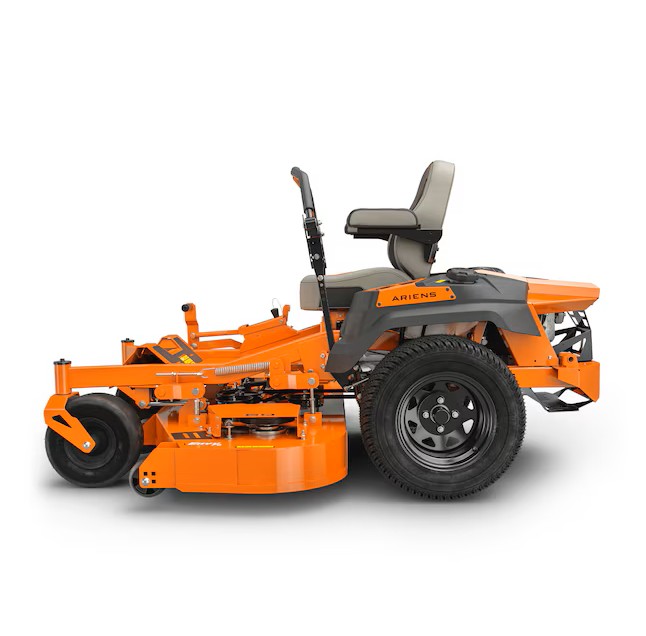

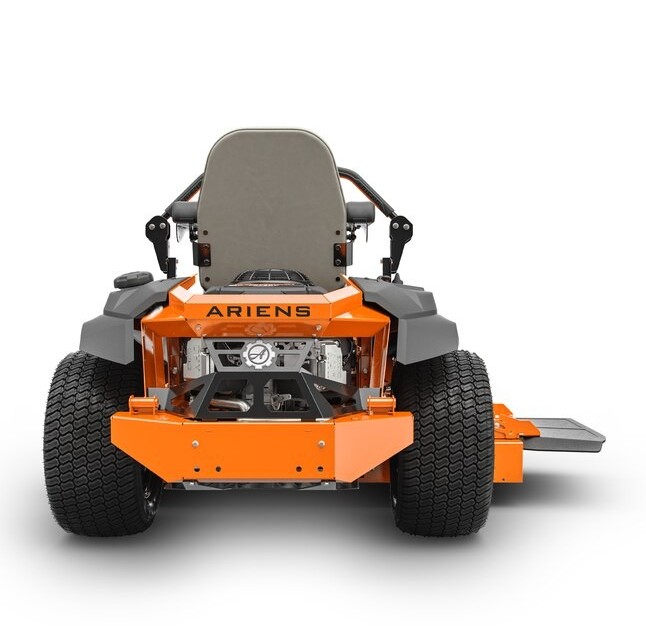

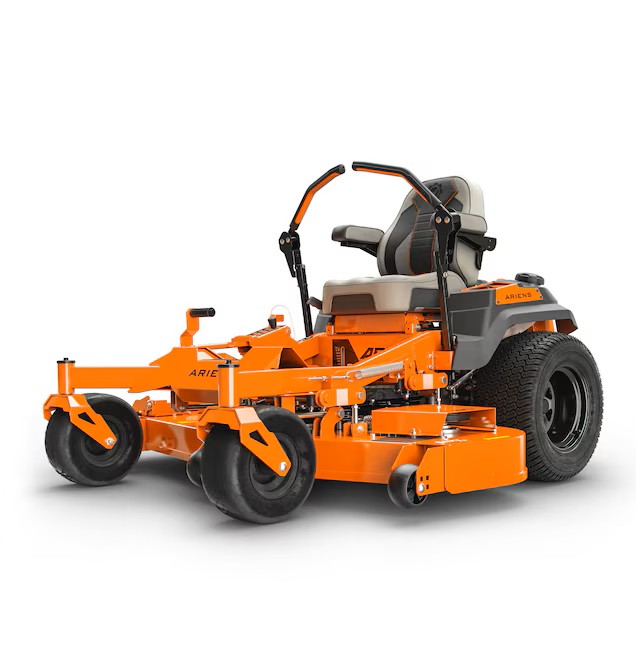

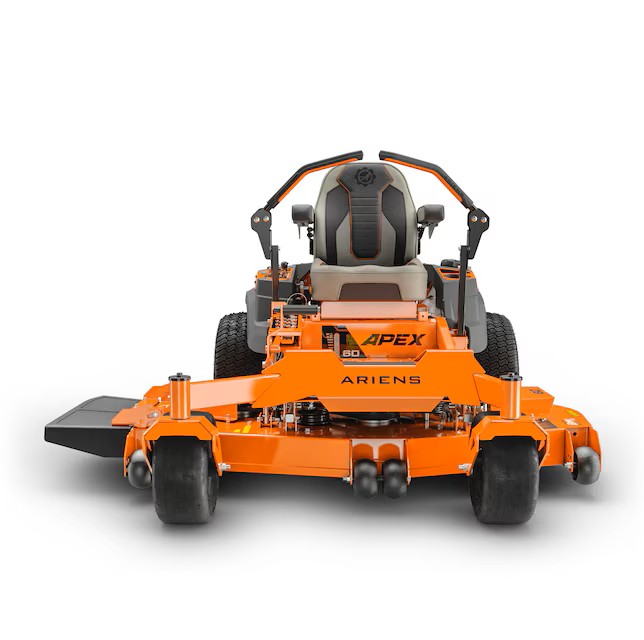

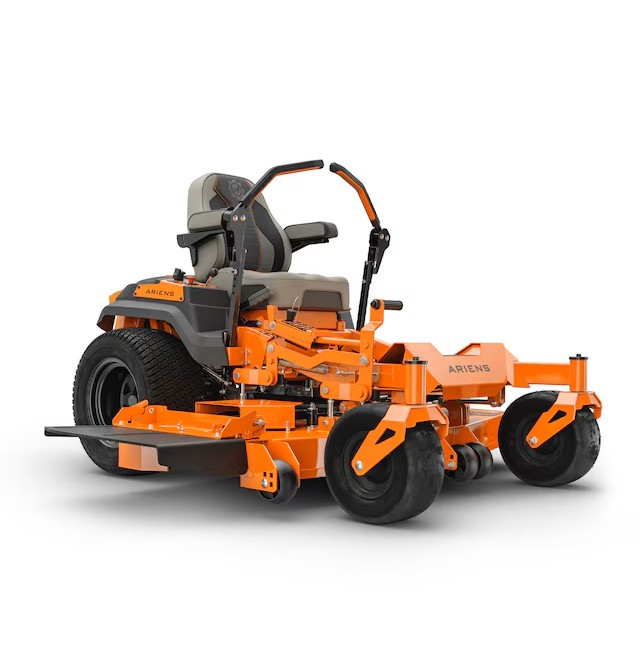

Let’s be honest, not all lawns are worthy of a machine of this caliber: tons of power that delivers a meticulous cutting performance on a mower with a distinctive design. That’s the Ariens APEX. Different models are equipped with a Kawasaki FR V-Twin or a Kohler 7000 Series V-Twin. Either one will help you quickly transform any grass into a beautifully manicured lawn. And this machine looks as great as it mows, with phenomenal graphics and a new premium stitched high back seat.

• 24 HP, 726cc V-Twin Kawasaki FR series engine is a commercial grade power plant that features cast iron cylinder liners for long life, automatic compression release for easy starting and internally vented carburetor for better fuel management

• 60-Inch commercial grade 10-gauge welded deck design that's 5.5 inches in deep with a reinforced leading edge provides the airflow needed to tackle tough mowing conditions with an increased evenness of cut

• Commercial hydro-gear ZT 3100 trans axles provide enhanced torque and load capacity with mowing speeds of 8 mph forward and 4 mph reverse

• Self-adjusting belt tension technology keeps deck belt tension constant, which maximizes belt life, minimizes wear and maintains a consistent, quality cut with minimal adjustments necessary

• Easy and intuitive foot-operated deck lift system provide effortless adjustments between 15 cutting positions in 1/4-in increments from 1.5 inches to 5 inches with a simple vertical pin selection

• Commercially inspired design with automotive style welded steel frame rails and ROPS (roll over protection system) capable

• Backed by Ariens 4 year/500 hour limited warranty (whichever occurs first, see warranty download for full program details)

•


•
  General Information

  • Series: APEX

  • Type: Zero-turn riding mower

  • Power Source: Gasoline

  • Usage: Residential

  • Engine: Kawasaki FR730 V-Twin – 24 HP

  • Start Type: Turn key start

• Dimensions & Capacity

  • Cutting Width: 60 inches

  • Overall Length: 74.5 inches

  • Overall Width (with deck): 62.8 inches

  • Assembled Weight: 853 lbs

  • Fuel Capacity: 5.1 gallons

  • Engine Oil Capacity: 64 oz

  • Rear Wheel Size: 22 inches

  • Front Wheel Size: 13 inches

• Performance

  • Recommended Yard Size: 5+ acres

  • Drive Type: Rear-wheel drive

  • Transmission: Dual hydrostatic

  • Steering: Dual lap bar

  • Maximum Forward Speed: 8 MPH

  • Maximum Reverse Speed: 4 MPH

  • Mow-in-Reverse: Yes

  • Engine Displacement: 726 cc

  • Recommended Terrain: Flat with obstacles

• Cutting System

  • Deck Type: Fabricated, 10-gauge steel

  • Number of Blades: 3

  • Number of Cutting Positions: 15

  • Cutting Height Range: 1.5 to 5 inches

  • Anti-Scalp Wheels: 6

  • Discharge Location: Side

  • Blade Engagement: Electric PTO

  • Mulching Capable: Yes (mulch kit sold separately)

  • Bagger Capable: Yes (bag not included)

• Features

  • Hour Meter: Yes

  • Ammeter: No

  • Cruise Control: No

  • Cup Holder: Yes

  • Seat: High-back with lumbar support and armrests

  • Oil Filter: Standard

  • Front Axle: Steel

  • Grease Fittings: No

  • Headlights: No

• Compatibility

  • Rear Attachment Compatible: Yes

• Warranty

  • 4-year limited warranty or 500 hours (whichever comes first)

• Compliance

  • CARB Compliant: No

  • Safety Listing: Not safety listed

  • California Prop 65 Warning: Yes
