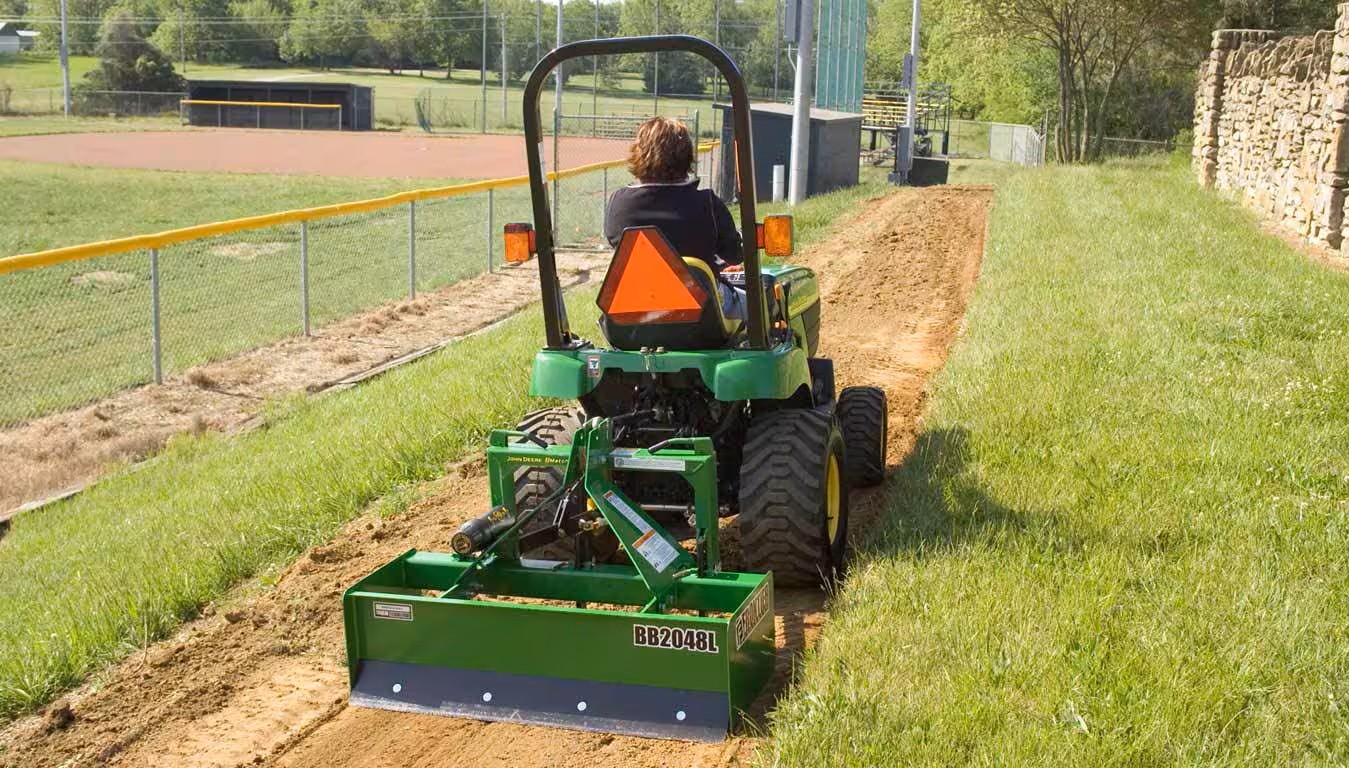

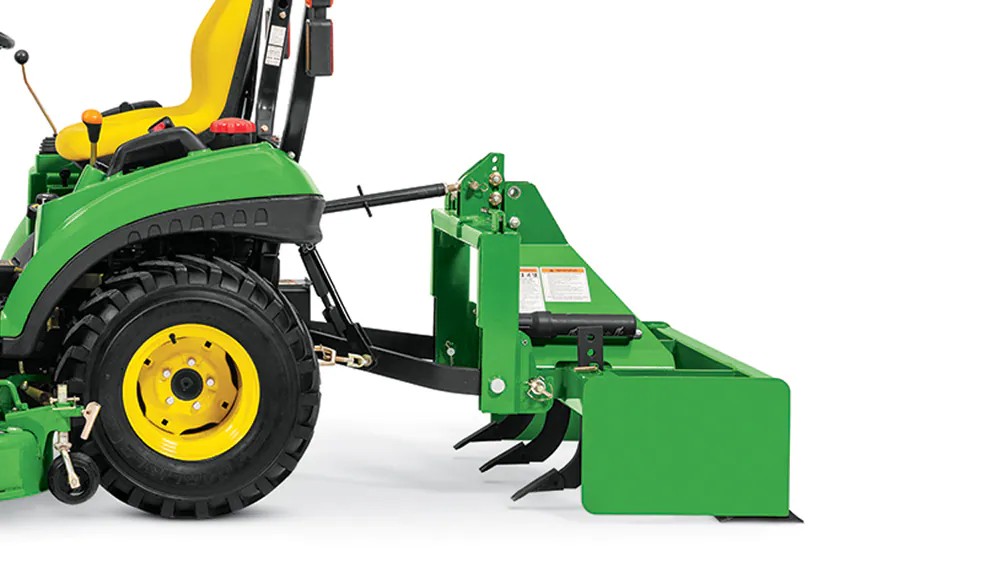

BB20L Series Box Blades

• Working Width: 121.9 cm (48 in.)

• Endplate Thickness: 1 cm (0.375 in.)

• Moldboard Thickness: 0.5 cm (0.1875 in.)

Dimensions & Weight:

• Operating Weight: 124.7 kg (275 lb)

• Shipping Weight: 288.5 kg (636 lb)

Power & Compatibility:

• PTO Horsepower: Up to 18.6 kW (25 hp)

• Tractor Compatibility: Category 0, Limited Category 1

Hitch & Capacity:

• Capacity: 0.19 m³ (6.6 cu ft)

• Design: Reinforced

Box Features:

• Reversible: Yes

• Quantity: Two

• Cutting Edge Size: 1.27 x 15.24 cm (0.5 x 6 in.)

Cutting Edge Details:

• Shank Type: 3-position with holes

• Points: Replaceable

• Quantity: Three

Scarifier Beam:

• Tubular Beam Size: 10.16 x 10.16 x 0.635 cm (4 x 4 x 0.25 in.)

• Reinforcement Bar Size: 0.09 x 2.54 cm (0.375 x 1 in.)

• Shank and Beam Type: Fixed

Tailgate:

• Type: Bolt-on

Mast and Paint:

• Color: JD Green

• Configuration: Two units per crate

Additional Info:

• Setup Time: Approximately 0.5 labor hours

• Warranty: 1 year
