OVERVIEW

Model #CMXGRAM211303

HowTo Manual  PDF

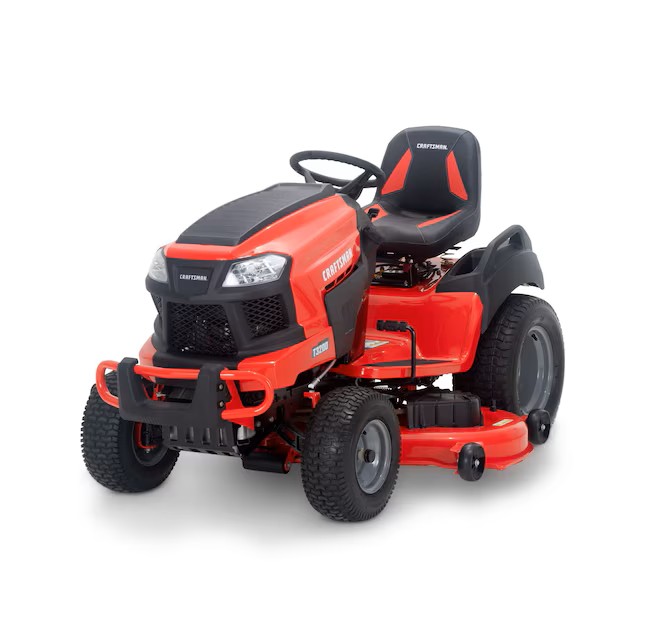

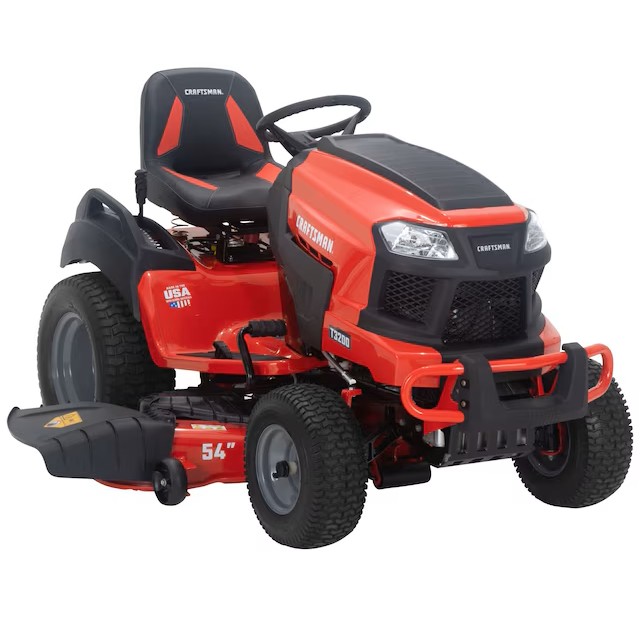

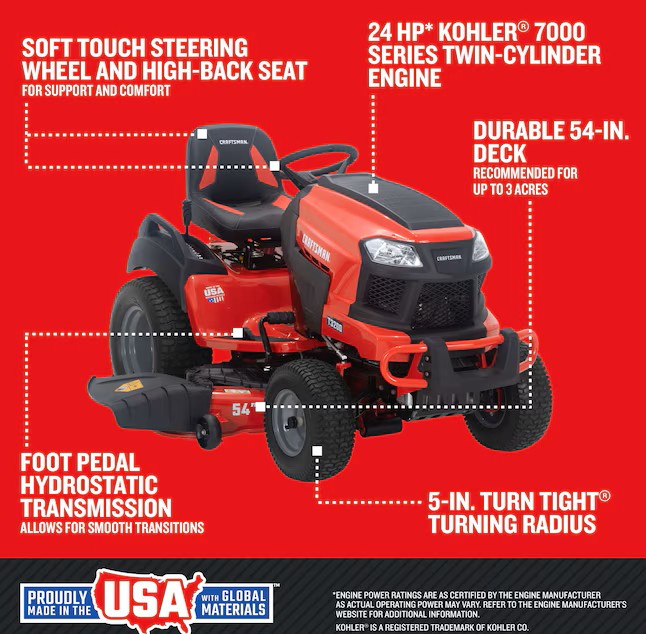

The CRAFTSMAN® T3200 front engine riding mower is designed for the homeowner who needs to accomplish more. Powered by a 24 HP KOHLER® twin-cylinder 7000 Series™ engine, this riding mower features a remarkable 54-in. steel deck. The hydrostatic transmission with foot pedal control, soft-touch steering wheel, and cut and sew, high-back seating for support and comfort will provide a precise ride as it glides through turns with a 5-in. TURN TIGHT™ radius. Add a mulching kit to make sure the job is finished like a professional by returning nutrients to your soil for a healthy lawn. With a front-end bumper for added protection, the CRAFTSMAN® T3200 is the reliable tool you need to get the job done right.

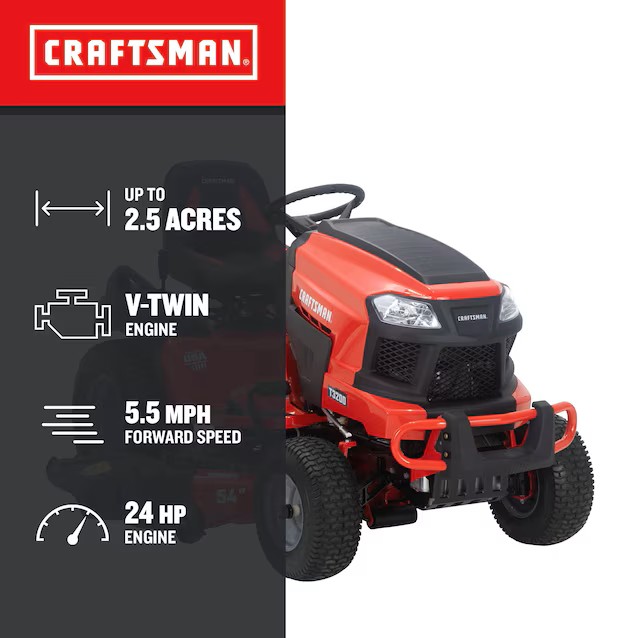

• Powerful engine: Durable 24 HP KOHLER® twin-cylinder 7000 Series™ engine

• Precise maneuverability: 5-in TURN TIGHT™ radius and 16x6.5/22x9.5 wheels

• Smooth ride: Foot pedal hydrostatic transmission allows for smooth transitions in speed and direction

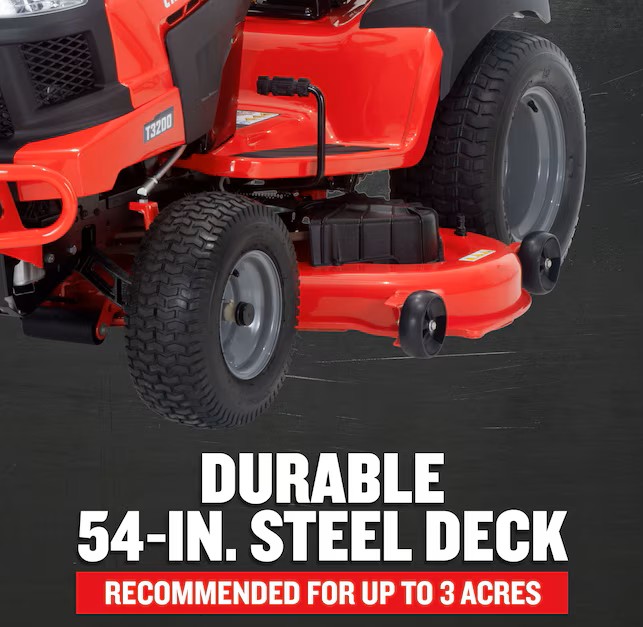

• Durable: 54-in stamped steel deck cuts up to 3 acres that is also equipped with "s" blade for optimal cuts and easy replacement

• Durable: AGM battery has a durable and compact design providing a longer lifespan and improved starting performance

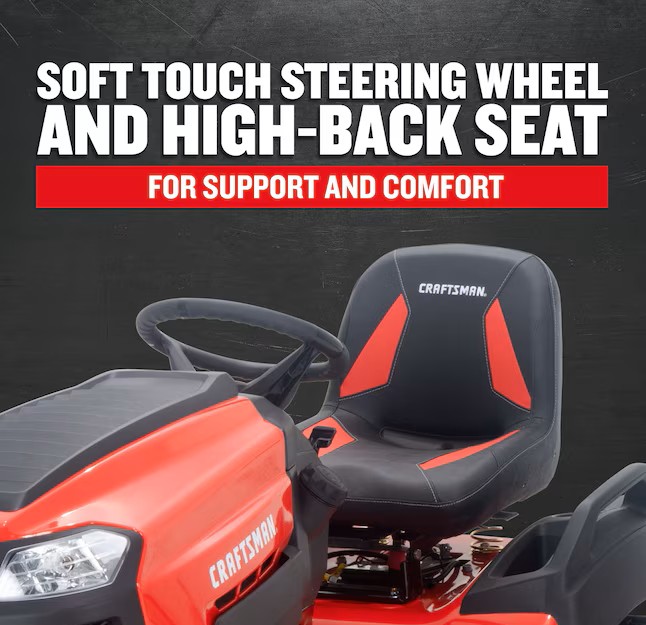

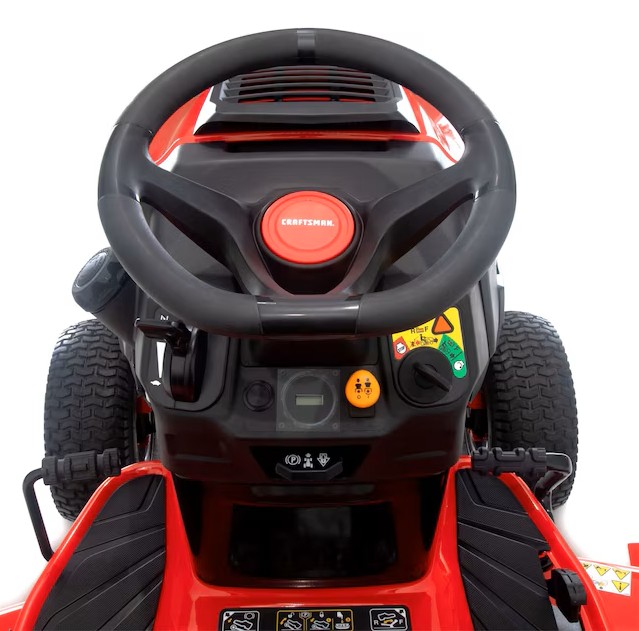

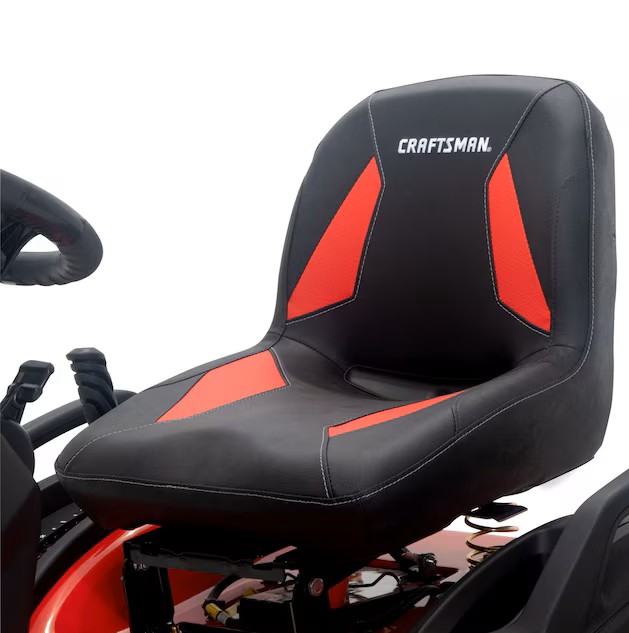

• Comfort steering and premium support: Soft touch steering wheel, cut and sew high-back seat for support and comfort

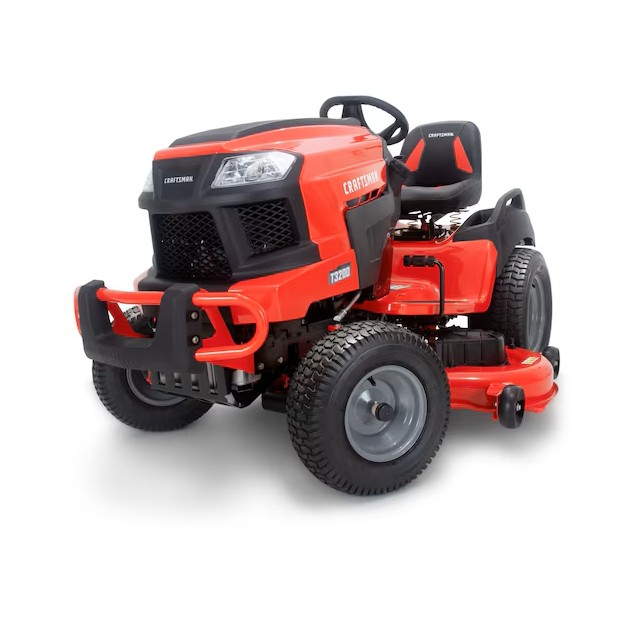

• Added protection: Added brush guard for front end protection against dents and scratches

• Proudly made in the USA with global materials in Martin, Tennessee and Willard, Ohio

• General
  Series Name : T3200 Turn Tight
  Type : Riding lawn mower
  Sub-Type : Lawn tractor

  Dimensions
  Assembled Weight : 522 lbs
  Maximum Cutting Height : 4 inches
  Cut Width : 54 inches
  Minimum Cutting Height : 1 inch
  Cutting Range / Yard Size : 2–3 acres
  Mower Deck Width : 54 inches
  Engine Oil Capacity : 64 oz
  Overall Length : 71.75 inches
  Front Wheel Size : 16 inches
  Overall Width with Deck : 60.75 inches
  Fuel Capacity : 3 gallons
  Rear Wheel Size : 22 inches

  Features
  Ammeter : No
  Headlights : Yes
  Bagger Capable : Yes
  Leaf Bag Included : No
  Blade Engagement Type (PTO) : Electric
  Lowe's Exclusive : Yes
  Commercial/Residential : Residential
  Maximum Forward Speed : 5.5 MPH
  Cruise Control : Yes
  Maximum Reverse Speed : 3 MPH
  Cup Holder : Yes
  Mulching Capable : Yes (kit sold separately)
  Deck Gauge : 11
  Number of Blades : 3
  Deck Type : Stamped
  Number of Deck Positions : 12
  Discharge Location : Side
  Number of Deck / Anti-Scalp Wheels : 5
  Drive Type : Rear wheel drive
  Oil Filter Type : Standard
  Engine Brand : KOHLER
  Operator-Controlled Mow-in-Reverse : Yes
  Engine Displacement : 747 cc
  Power Source : Gas
  Engine Horsepower : 24 HP
  Recommended for Terrain Type : Flat with obstacles
  Engine Oil Included : Yes
  Seat Type : High-back
  Engine Series : 7000
  Start Type : Turn key start
  Engine Type : V-twin
  Steering Type : Standard wheel
  Front Axle : Cast iron
  Transmission Type : Hydrostatic
  Grease Fittings : Yes
  Turning Radius : 5 inches

  Compatibility
  Attachment Compatible : Front and rear
  Matching Mulch Kit (Item #) : 5216233
  Matching Bagger (Item #) : 5505717

  Warranty
  Warranty : 3-year limited

  Certifications
  CA Residents: Prop 65 Warning(s) : Yes
  Safety Listing : Not safety listed
  California Air Resources Board Compliant : No

  Miscellaneous
  UNSPSC : 21101700
