OVERVIEW

HowTo Manual PDF

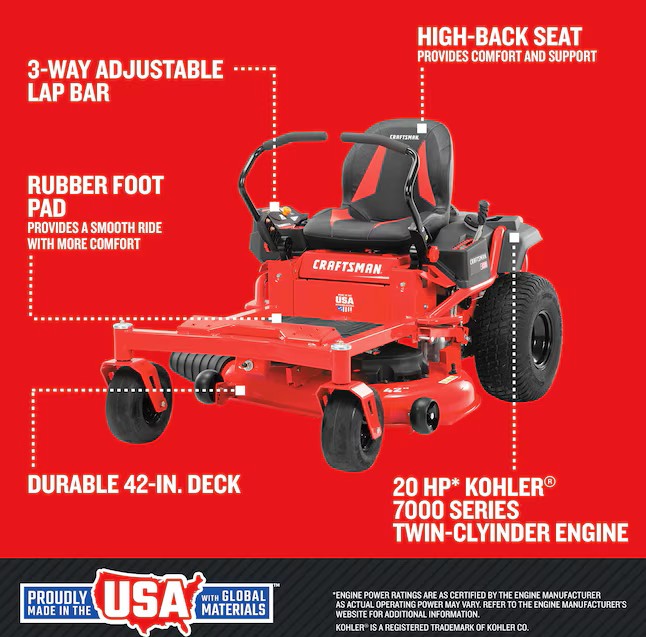

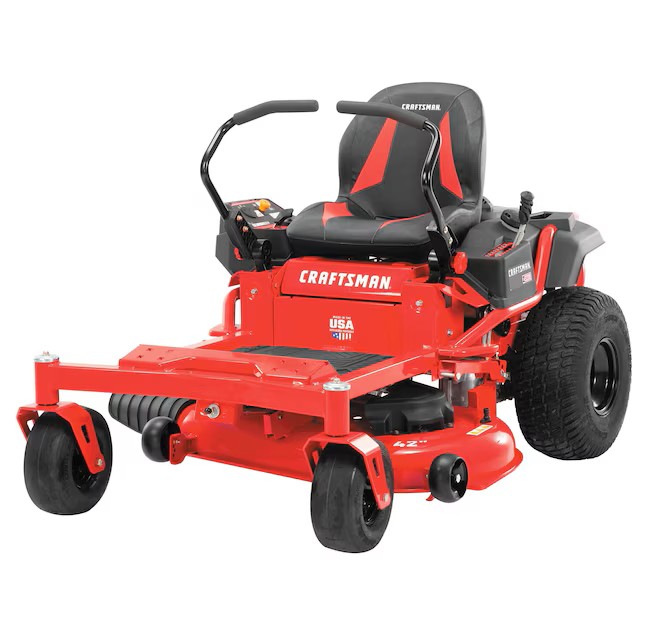

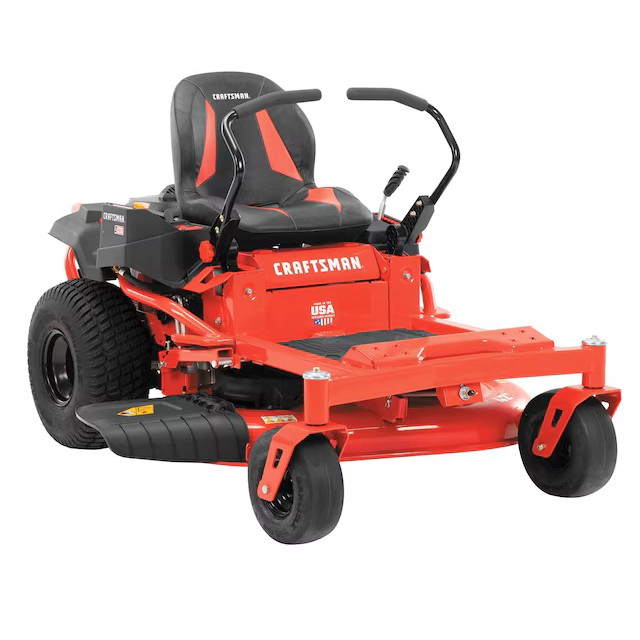

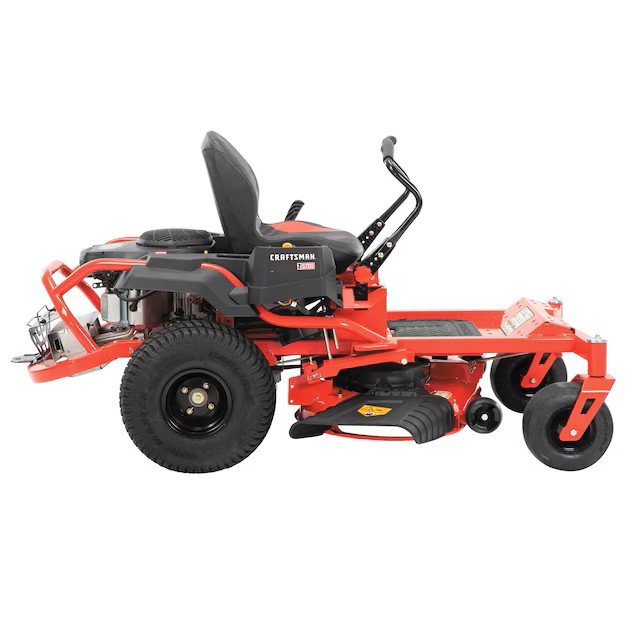

The CRAFTSMAN® Z5200 zero-turn riding mower provides an optimum mowing experience. Its strong 20 HP Kohler® 7,000 twin-cylinder engine provides the power and reliability you need to get the job done. Equipped with a 42-inch steel deck, robust steel frame design, and dual range hydrostatic transmission for durability and control. This mower will provide an exceptional ride as you power through the lawn in comfort and support thanks to a high-back seat. You can add an optional mulching kit to create the perfect finishing touches by returning nutrients to your soil for a healthier lawn. Give your yard a professional look with the CRAFTSMAN® Z5200 zero-turn riding mower.

• Powerful engine: Powered by a reliable 20 HP Kohler® 7000 twin-cylinder engine

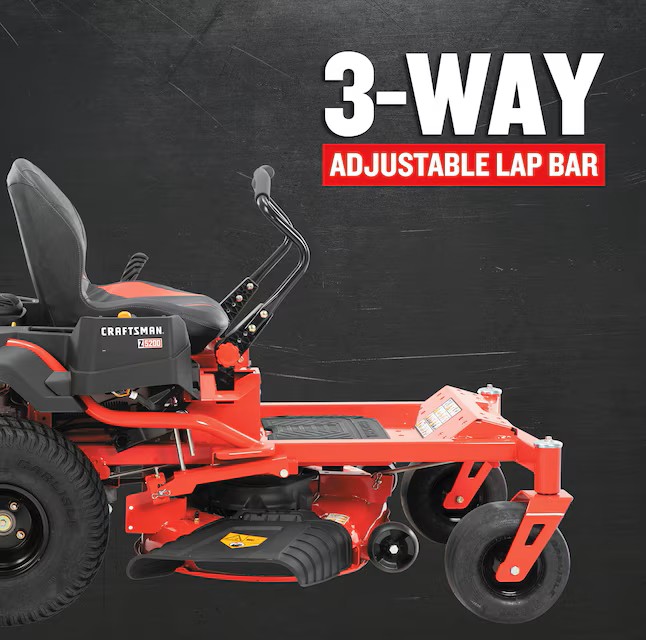

• Adjustable lap bar: Easy to operate 3-way adjustable lap bar

• Comfort: Rubber foot pad allows you to focus on the task at hand by providing a smoother ride and help reduce vibration

• Increased traction control: 20x8/11x6 Turf Master® tires offer excellent traction without damaging your yard

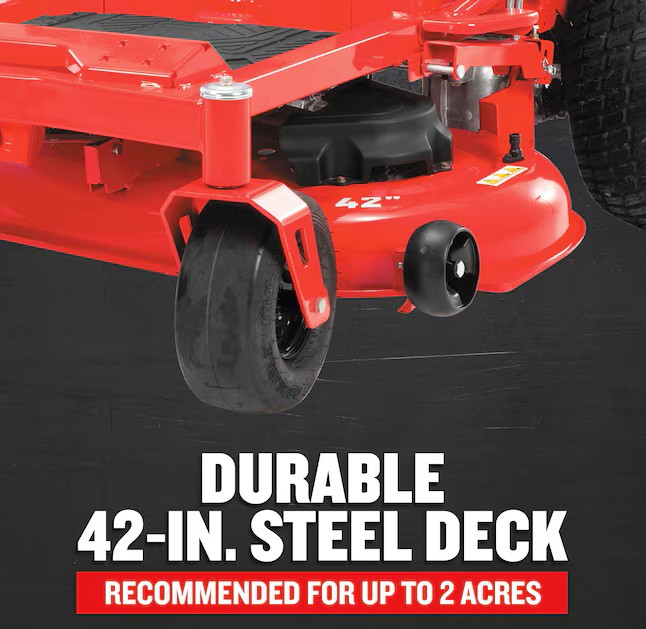

• Durable: 42-in stamped steel deck holds up against tough obstacles

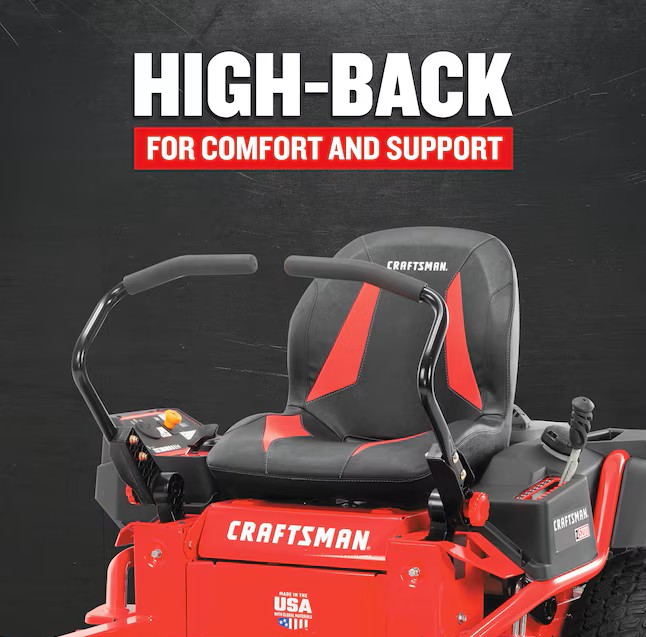

• Cut-and-sew seat: High-back seat provides comfort and support to make sure the job gets done right

• Warranty: 3-year limited product manufacturer warranty and 5-year frame warranty

• Engine disclaimer: Engine power ratings are as certified by the engine manufacturer as actual operating power may vary

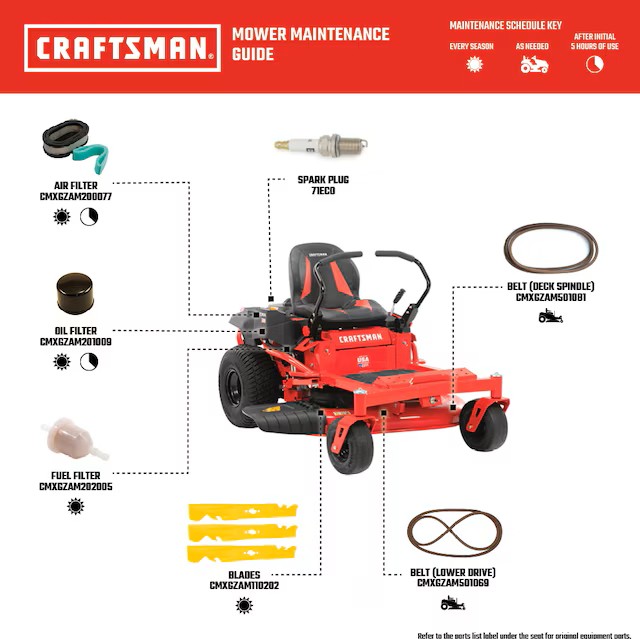

• See the Parts and Attachments section below and the parts diagram in the images section for all the correct CRAFTSMAN® mowers parts and accessories

General
Series Name : Z5200
Type : Zero-turn riding lawn mower
Sub-Type : Lawn tractor

Dimensions
Assembled Weight : 600 lbs
Fuel Capacity : 3.5 gallons
Cut Width : 42 inches
Overall Length : 84 inches
Cutting Range/Yard Size : 1–2 acres
Overall Width with Deck : 48 inches
Engine Oil Capacity : 64 oz
Rear Wheel Size : 20 inches
Front Wheel Size : 11 inches

Features
Ammeter : No
Lowe's Exclusive : Yes
Bagger Capable : Yes
Maximum Forward Speed : 7 MPH
Blade Engagement Type (PTO) : Electric
Maximum Reverse Speed : 3.5 MPH
Cruise Control : No
Mulching Capable : Yes (kit sold separately)
Deck Gauge : 13
Number of Blades : 2
Deck Type : Stamped
Number of Deck Positions : 8
Discharge Location : Side
Number of Deck/Anti-Scalp Wheels : 2
Drive Type : Rear wheel drive
Oil Filter Type : Spin-on
Engine Brand : KOHLER
Operator-Controlled Mow-in-Reverse : Yes
Engine Displacement : 725 cc
Power Source : Gas
Engine Horsepower : 20 HP
Recommended for Terrain Type : Flat with obstacles
Engine Oil Included : Yes
Seat Type : High-back
Engine Series : Kohler 7000
Start Type : Turn key start
Engine Type : V-twin
Steering Type : Dual lap bar
Front Axle : Fabricated steel
Transmission Type : Dual hydrostatic
Grease Fittings : Yes
Maximum Cutting Height : 4.5 inches
Minimum Cutting Height : 1 inch
Headlights : No
Leaf Bag Included : No

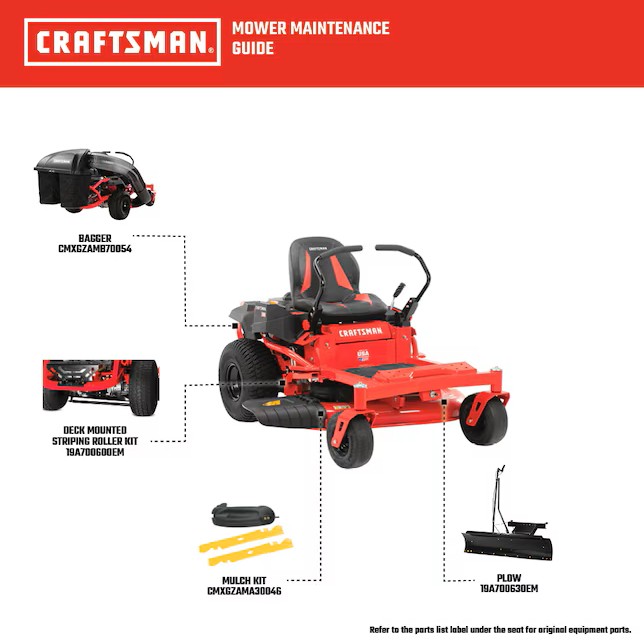

Compatibility
Attachment Compatible : Rear
Matching Mulch Kit (Item #) : 2916552
Matching Bagger (Item #) : 5505718

Warranty
Warranty : 3-year limited

Certifications
CA Residents: Prop 65 Warning(s) : Yes
Safety Listing : Not safety listed
California Air Resources Board Compliant : No

Miscellaneous
UNSPSC : 27112000
