John Deere Z330M ZTrak 48-in 23 -HP V-twin Gas Zero-turn Riding Lawn Mower

John Deere Z330M ZTrak 48-in 23 -HP V-twin Gas Zero-turn Riding Lawn Mower

$ 2340

$ 3343

30% discount.

Warranty Guide PDF

Overview

Model #BG21300

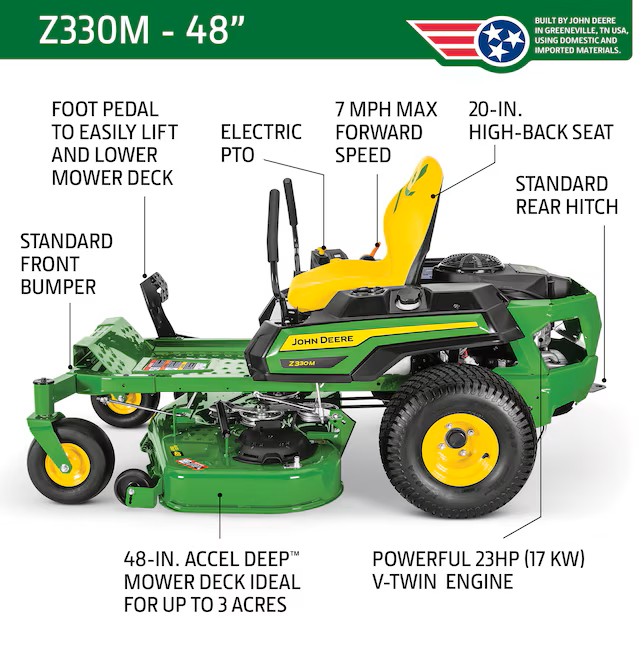

Built in Greeneville, TN, the Z330M 48-inch is designed for improved ride quality and durability with a tougher frame and large front tires. Easy to operate, the 23-HP John Deere Branded - Kawasaki® V-Twin engine delivers a smooth, powerful performance. The 48-in. (122-cm) forged Accel Deep™ Deck produces a superior lawn at higher mowing speeds and is easily equipped to bag or mulch.

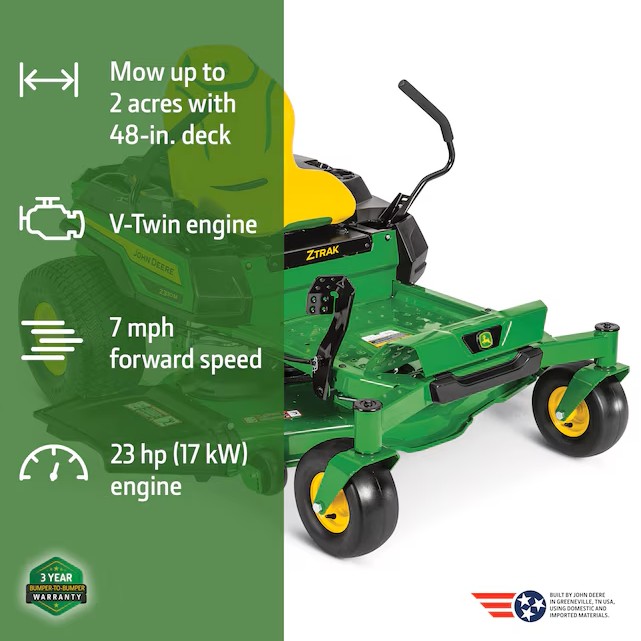

  • Mow up to 3 acres

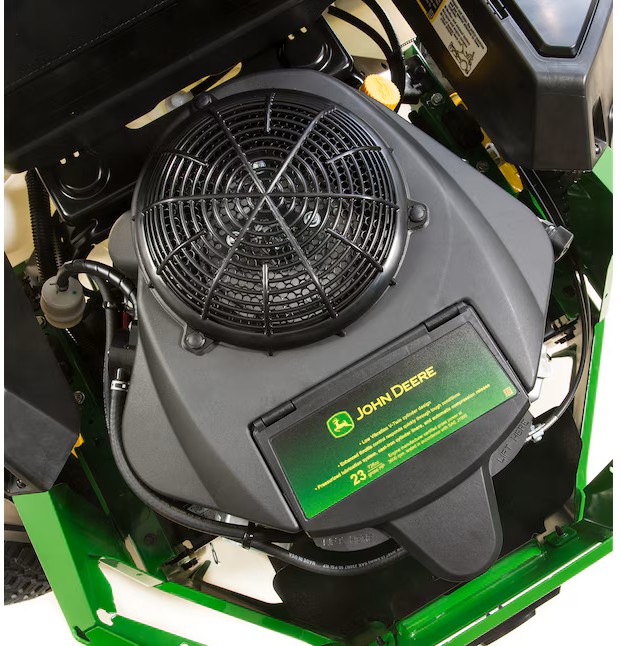

  • 23 HP (17 kW) John Deere Branded - Kawasaki® V-Twin engine

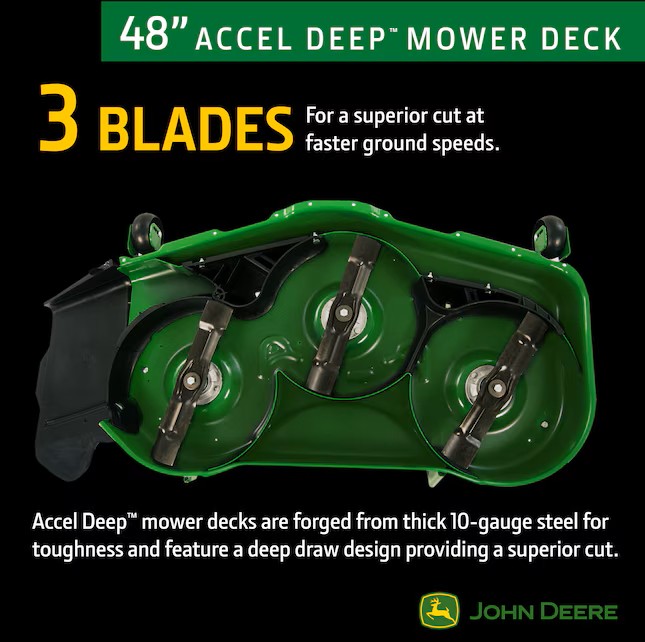

  • 48-in (122 cm) forged Accel Deep™ Mower Deck

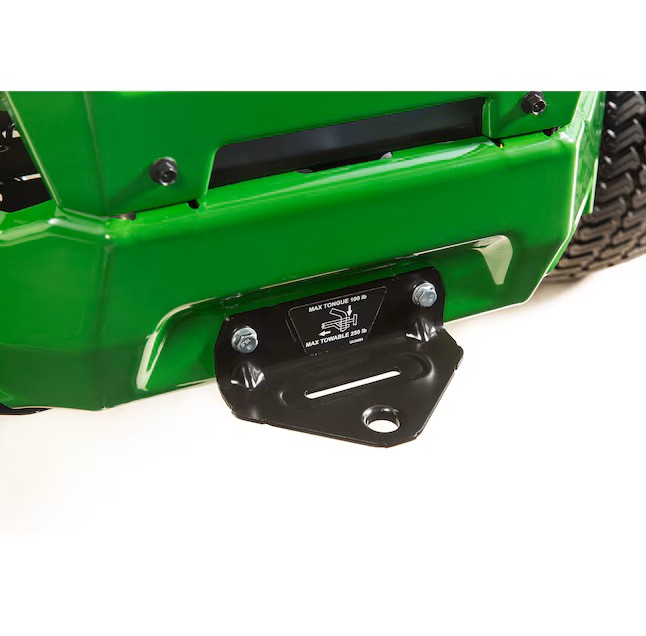

  • 20-in high-back, custom-tailored seat and standard rear hitch

  • Mow up to 7 mph (11.2 km/h) with 3-gal (13.6-liter) fuel tank

  • Integrated park brake activates when you are done mowing, automatically engaging when the steering levers are in the outward position

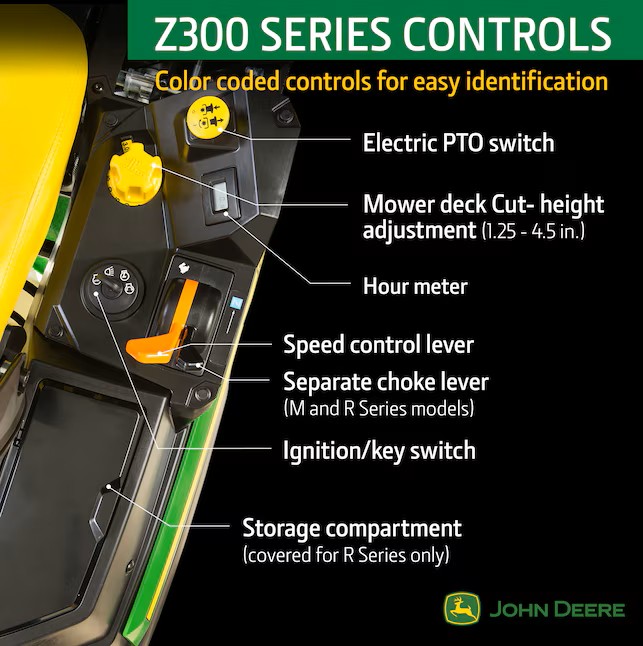

  • A convenient foot lift is used to easily raise the mower deck for setting cutting heights from 1.25 to 4.5 inches

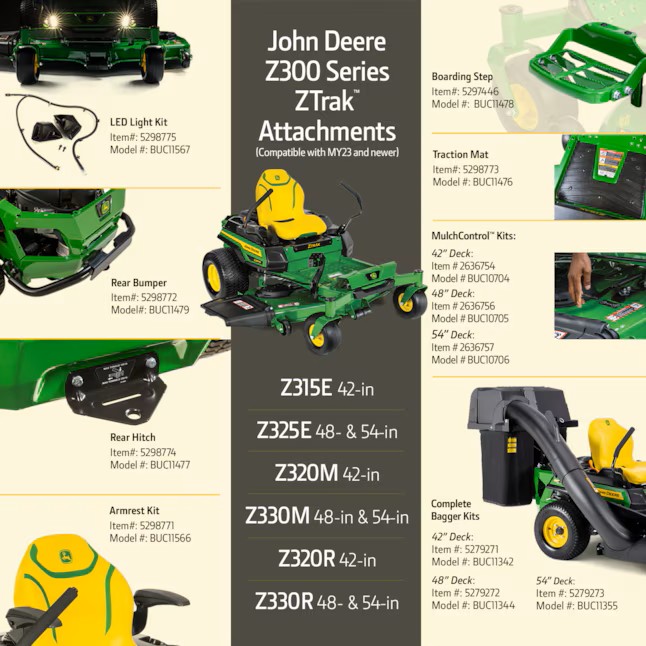

  • Do more than mow with optional attachments - PowerFlow Bagger (BUC11344), Mulch Control Kit (BUC10705) and hitch (BUC11477) are each sold separately

  • Hassle-Free Ownership: John Deere 3-year/200-hour bumper to bumper warranty, local John Deere dealer support and a 10-Point Pre-Delivery Inspection prior to sale


General Specifications

  • Series Name: Z330M ZTrak

  • Type: Zero-turn riding lawn mower

  • Fuel Capacity: 3 Gallons

  • Engine Oil Capacity: 70.4 oz

  • Engine Oil Included: Yes

  • Power Source: Gas

  • Engine Brand: Kawasaki

  • Engine Type: V-twin

  • Engine Displacement: 726 cu. cm

  • Engine Horsepower: 23 HP

  • Transmission Type: Dual hydrostatic

  • Drive Type: Rear-wheel drive

Dimensions & Weight

  • Assembled Weight: 598 lbs

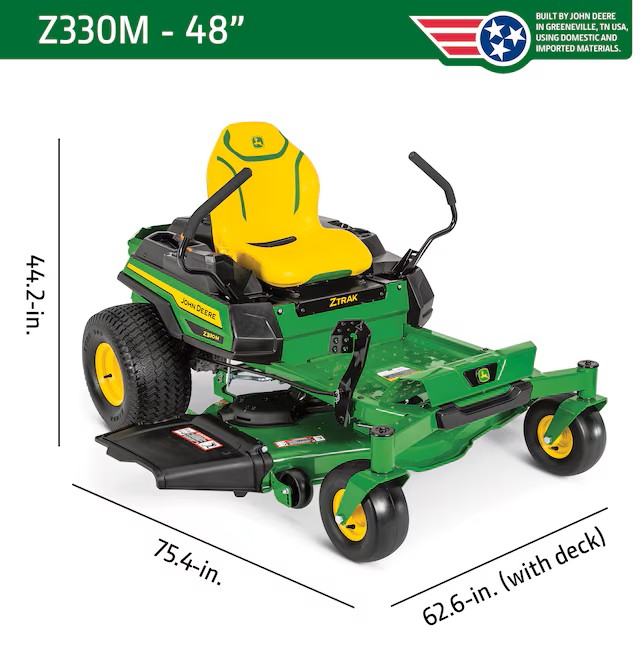

  • Overall Length: 77.8 inches

  • Overall Width with Deck: 62.6 inches

  • Cutting Width: 48 inches

  • Maximum Cutting Height: 4.5 inches

  • Minimum Cutting Height: 1.25 inches

Performance & Features

  • Cutting Range: 2-3 acres

  • Maximum Forward Speed: 7 MPH

  • Maximum Reverse Speed: 3.5 MPH

  • Number of Blades: 3

  • Blade Engagement Type (PTO): Electric

  • Deck Type: Stamped

  • Number of Deck Positions: 14

  • Deck Gauge: 10

  • Discharge Location: Side

  • Number of Deck/Anti-Scalp Wheels: 2

  • Cruise Control: No

  • Operator-Controlled Mow-in-Reverse: Yes

  • Mulching Capable: Yes (Mulch kit sold separately)

  • Bagger Capable: Yes (Bagger not included)

  • Leaf Bag Included: No

  • Ammeter: No

  • Hour Meter Type: Meter only

Wheel Size

  • Rear Wheel Size: 20 inches

  • Front Wheel Size: 11 inches
