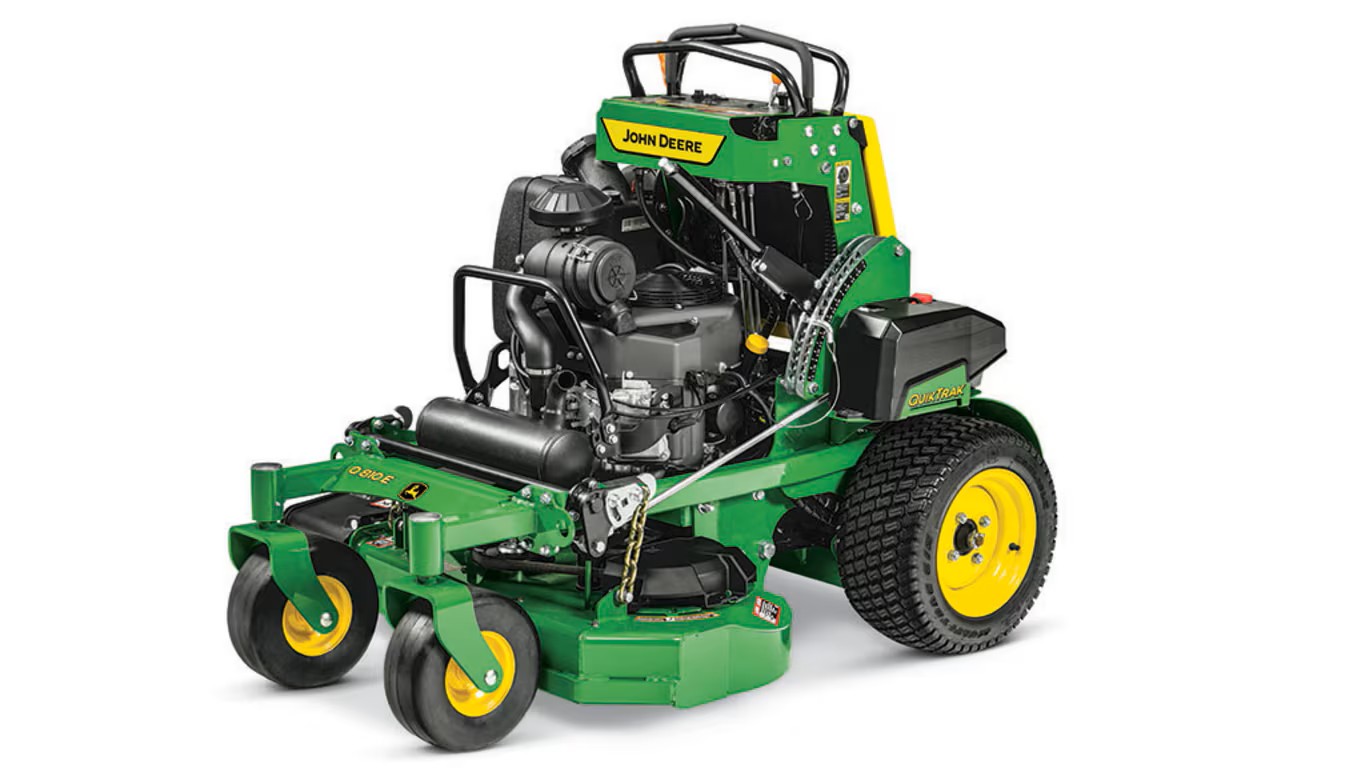

John Deere Q810E QuikTrak™ Stand-On Mower – Detailed Description

The John Deere Q810E is a high-performance stand-on mower engineered for professional turf management, delivering both power and precision for commercial mowing applications.

Engine & Power

• Powered by a robust FX600V V-twin gasoline engine producing 19 horsepower (14.2 kW) at 3,600 rpm.

• Features 36.8 cubic inches (603 cc) displacement with two cylinders arranged in a V-twin configuration.

• Equipped with a full-flow replaceable oil filter and full-pressure lubrication to ensure engine longevity.

• Cooling is handled by forced air with integrated clean-out ports to maintain optimal operating temperature.

• The electrical system runs on a 12-volt battery with a 300 cold cranking amps (CCA) rating, ensuring reliable starts even in cold conditions.

• The engine includes a fuel shut-off valve and a fuel tank capacity of 5.6 U.S. gallons (21.2 liters) for extended mowing sessions.

Mower Deck

• The mower features a 36-inch (91 cm) fabricated steel deck with a 7-gauge thickness (0.180 in. / 4.6 mm) built for durability.

• The deck utilizes a floating mount system allowing it to follow turf contours for a smooth cut.

• Cutting height is adjustable from 1.5 inches to 5 inches (3.8 to 12.7 cm) in fine increments of 0.25 inches (0.64 cm).

• The deck discharges clippings from the side, helping maintain an even cut and preventing clumping.

• The blades have a tip speed of approximately 18,000 feet per minute (5,486 m/min), ensuring clean, efficient cutting.

Drive & Controls

• The Q810E uses separate hydraulic pumps and motors for smooth and responsive control.

• Speed ranges from 0 to 8 mph (0 to 12.9 km/h) forward, and 0 to 3.5 mph (0 to 5.6 km/h) reverse with infinite speed variation via twin hand-controlled levers.

• The drive wheels are 18x8.5-10 pneumatic tires, providing good traction and ride comfort.

• Caster wheels are flat-free 11x4-5, which reduce downtime and maintenance due to flats.

• The park brake is engaged by tire engagement via a hand lever, enhancing safety when the mower is stationary.

• Dynamic braking is controlled through the twin hand levers for precise stopping power.

• The mower includes an operator presence starting system to ensure safety, preventing accidental starts.

Hydraulic System

• The hydraulic system holds 5 quarts (4.7 L) of fluid with a spin-on replaceable filter.

• Equipped with a radiator core hydraulic oil cooler to maintain optimal hydraulic temperatures during heavy use.

Dimensions & Weight

• Overall dimensions are 62 inches (157.5 cm) long, 49.5 inches (126 cm) wide with the chute down, and 46 inches (117 cm) high.

• The mower weighs approximately 720 lbs (327 kg), providing a balance of stability and maneuverability.

Additional Features

• Digital hour meter for easy tracking of usage and maintenance intervals.

• Heavy-duty canister air cleaner with efficient filtration.

• Battery charging system rated at 20 amps at 3600 rpm.

• Comfortable and ergonomic controls designed for operator ease during long mowing sessions.

Warranty

• Comes with a 36-month or 1200-hour warranty, whichever comes first.

• First 24 months have no hour limitation, ensuring peace of mind for extensive use.
