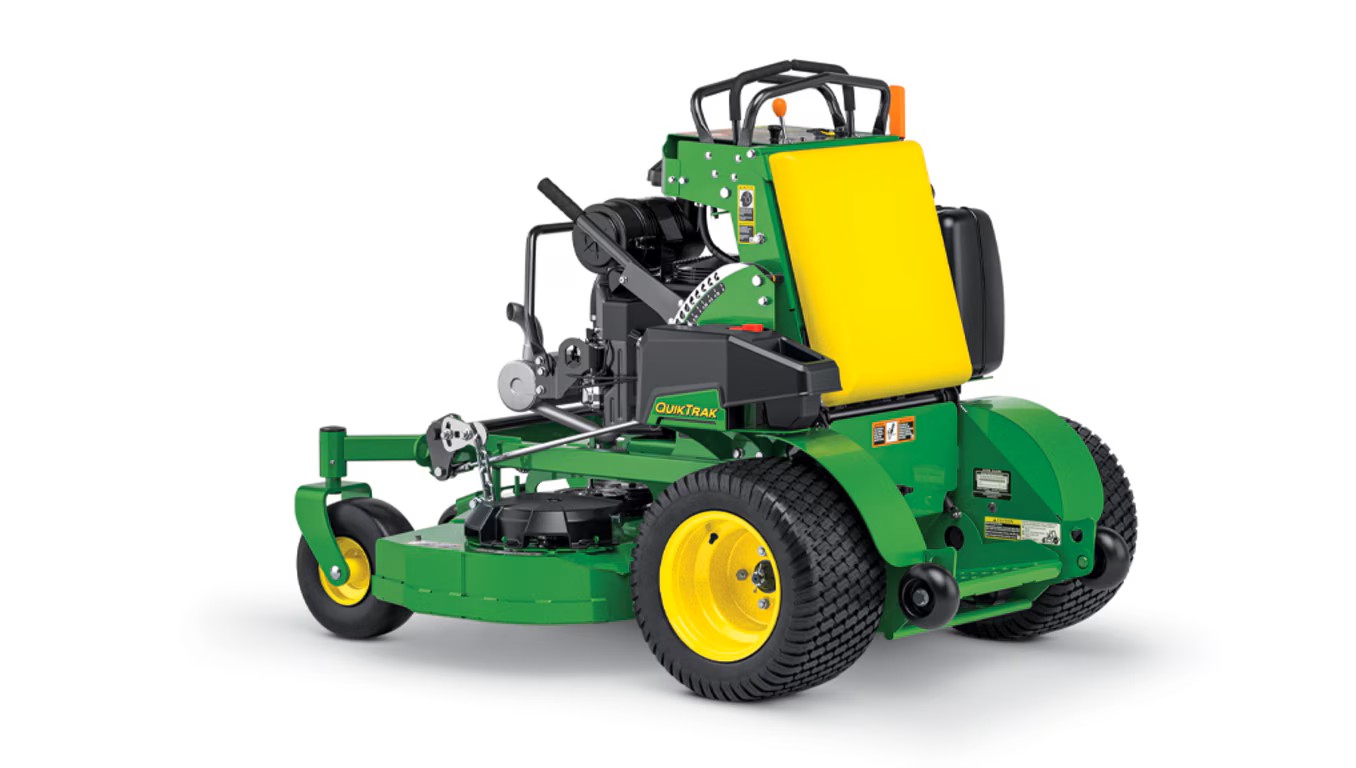

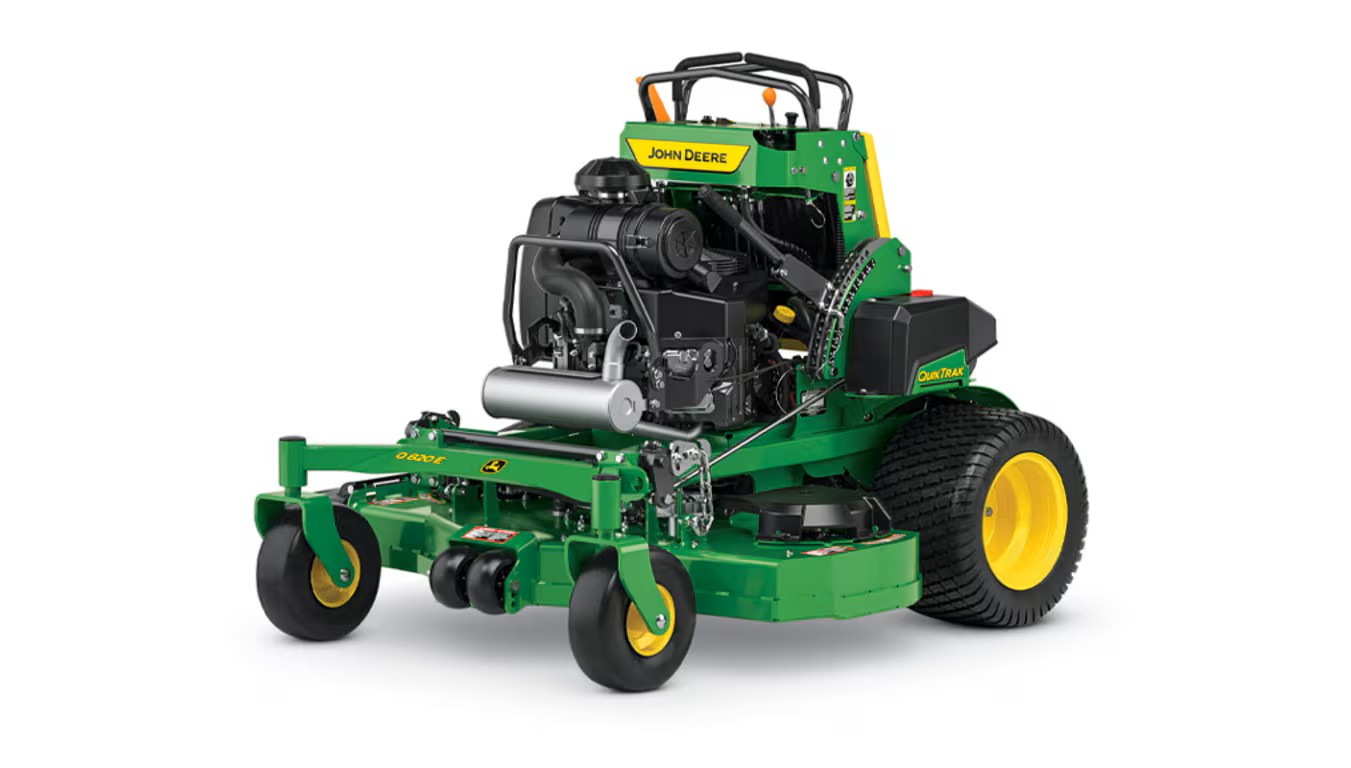

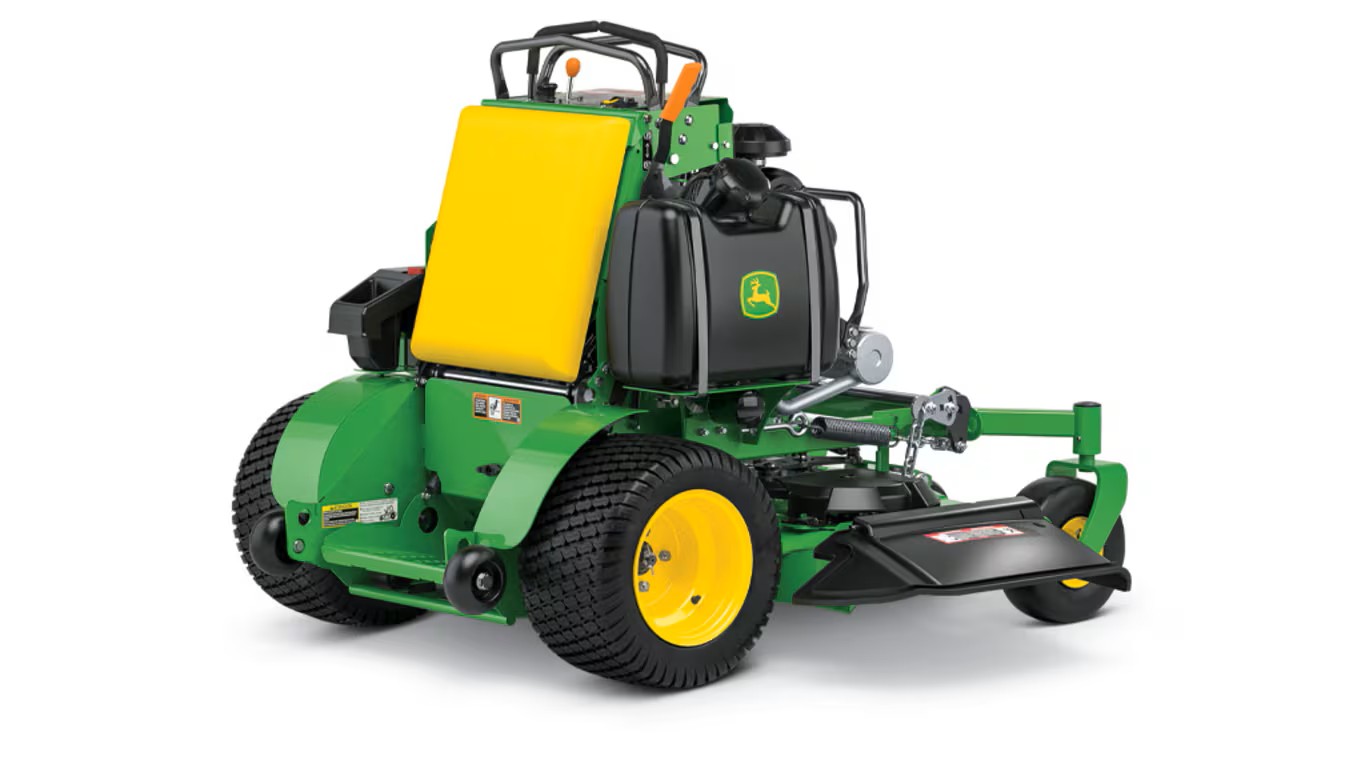

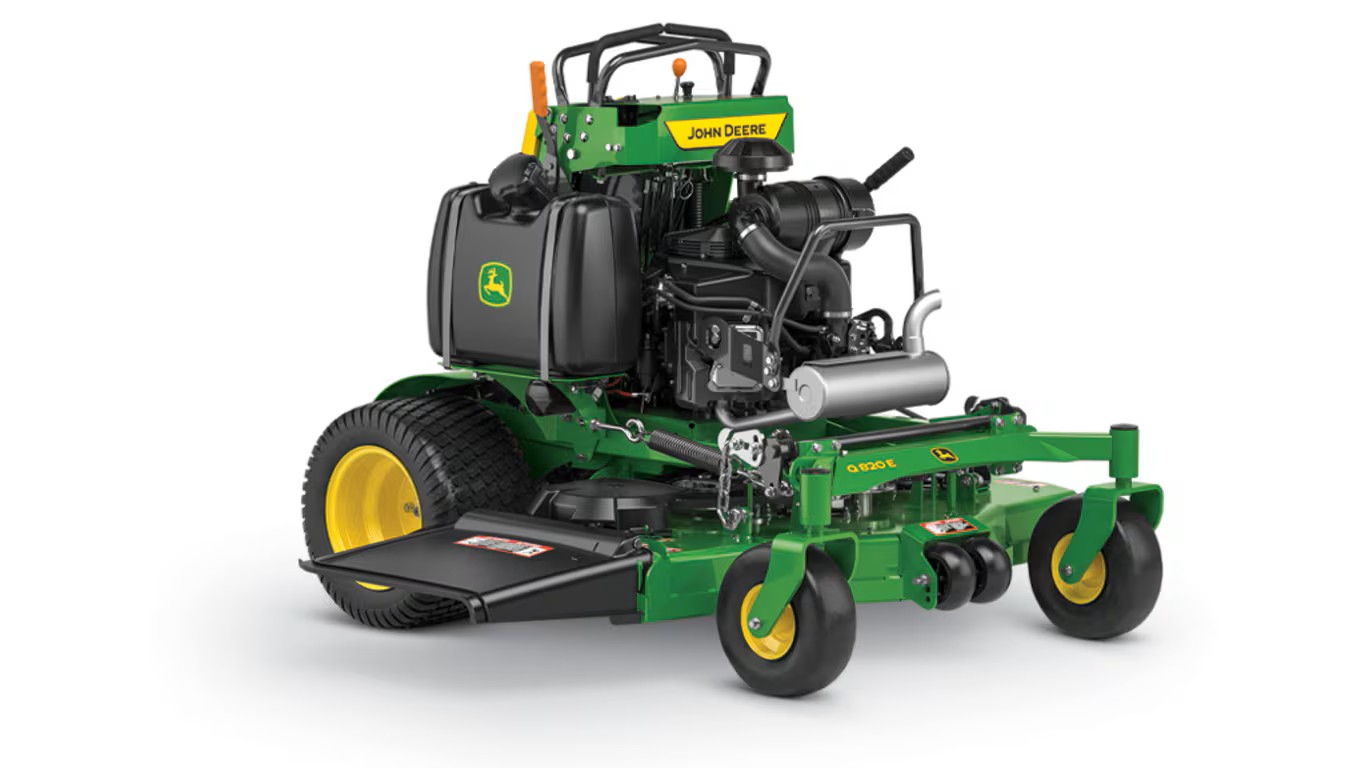

John Deere Q820E QuikTrak™ Stand-On Mower – 48-Inch Commercial Power & Efficiency

The John Deere Q820E QuikTrak™ Stand-On Mower is engineered for professional landscapers seeking power, maneuverability, and productivity. Built with a robust 48-inch fabricated steel mowing deck and powered by a 23.5-hp (17.5-kW) Kawasaki FX730V V-twin engine, this stand-on mower is ideal for navigating tight spaces without sacrificing cut quality or speed.

Engine & Power

• Engine Manufacturer/Model: Kawasaki FX730V

• Engine Power: 23.5 hp (17.5 kW) gross at 3,600 rpm

• Displacement: 726 cc (44.3 cu in.)

• Cylinders: Two, V-twin

• Cooling: Forced air with integrated clean-out ports

• Lubrication: Full pressure

• Crankcase Capacity: 2.2 qt (2.1 L) with filter

• Air Cleaner: Heavy-duty canister with safety element

• Fuel Type: Gasoline

• Fuel Tank Capacity: 5.6 U.S. gal. (21.2 L)

• Fuel Shut-off Valve: Yes

Transmission & Drive System

• Type: Separate hydrostatic pumps and wheel motors

• Pumps: 10 cc (0.61 cu in.)

• Motors: 196 cc (12 cu in.)

• Hydraulic Capacity: 5 qt (4.7 L) with filter

• Cooling: Radiator core with spin-on replaceable filter

• Travel Speed:

  • Forward: 0–8 mph (0–12.9 km/h)

  • Reverse: 0–3.5 mph (0–5.6 km/h)

• Speed Control: Twin hand levers for precise navigation

Mowing Deck

• Deck Size: 48 in. (122 cm) fabricated steel

• Construction: 7-gauge (0.180 in./4.6 mm) floating deck system

• Blade Tip Speed: Approx. 18,000 fpm (5,486 m/min)

• Cutting Height Range: 1.5 to 5 in. (3.8–12.7 cm) in 0.25 in. (0.64 cm) increments

• Blades: Three high-performance blades

• Discharge: Side discharge

Tires & Braking

• Drive Wheels: 18x10.5-10 pneumatic tires (4 PR)

• Caster Wheels: 11x4-5 flat-free

• Braking System: Dual hand-controlled dynamic braking

• Parking Brake: Hand-lever engaged tire brake

Electrical & Safety Features

• Charging System: 20 amp at 3,600 rpm

• Battery: 12 V, 300 CCA

• Hour Meter: Standard digital

• Operator Presence System: Yes

Dimensions & Weight

• Length: 59.75 in. (151.8 cm)

• Width (with chute): 62 in. (157 cm)

• Height: 46 in. (117 cm)

• Weight: 800 lb (363 kg)

Warranty

• Coverage: 36 months or 1,200 hours, whichever comes first

• Unlimited hours during the first 24 months
